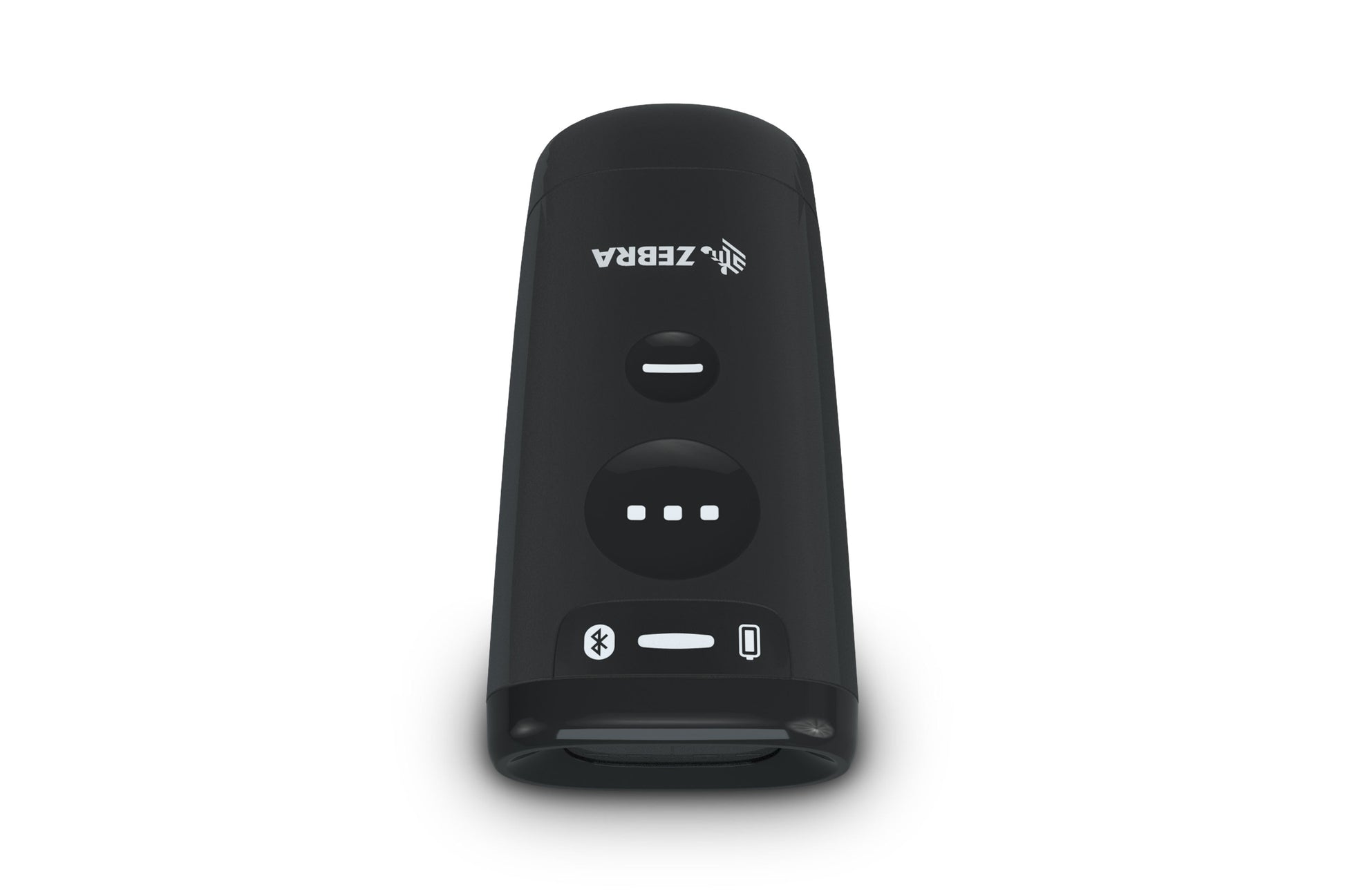

Zebra CS60 Pocket Barcode Scanner (CS6080-SR40004VMWW)

The Zebra CS60 (CS6080) is Zebra's ultra-compact companion scanner with a first-of-its-kind convertible design: swap the battery for the corded USB converter – or back – at any time, and the same scanner works as a cordless Bluetooth® pocket scanner, a corded handheld or a hands-free presentation scanner. A 1280 × 960 megapixel sensor and Zebra's PRZM Intelligent Imaging read virtually every 1D and 2D barcode – including poorly printed, damaged, dirty, crinkled, low-contrast and glossy codes and electronic barcodes on dimly lit phone screens. IP65 sealing, a 1.8 m drop rating and a 3-year (36-month) Zebra warranty make it ready for all-day use. This version, CS6080-SR40004VMWW, is the cordless Bluetooth scanner with Apple MFi certification for iPhone and iPad: it comes with the 745 mAh battery installed, but without a cradle, charger or cable.

Key Features

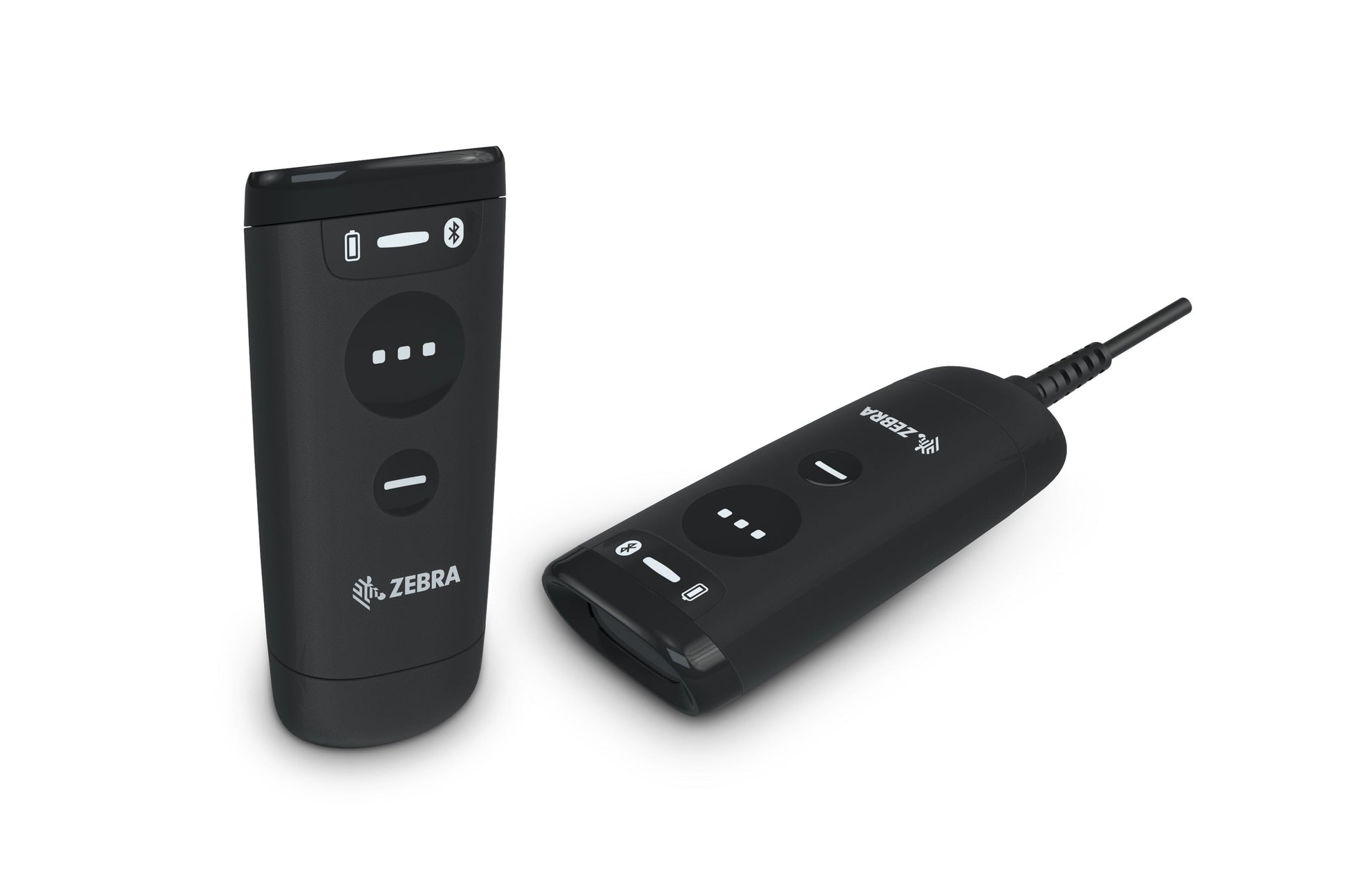

• First-of-its-kind convertible design – swap the battery and the corded USB converter at any time to switch between cordless and corded operation; add the Gooseneck Intellistand for automatic switching between handheld and hands-free scanning – one scanner for every workflow and full investment protection.
• Proven scanning performance – a 1280 × 960 megapixel sensor and Zebra's PRZM Intelligent Imaging read poorly printed, damaged, dirty, crinkled, low-contrast and glossy barcodes as well as electronic codes on dimly lit phone screens; reads UPC codes from 4.6 to 49.5 cm, plus OCR-A/B, MICR and US currency.
• Pocket-size and wearable – at just 83 g (cordless) or 56 g (corded) and 2.3 cm thin, the CS60 fits naturally in the hand or in a pocket; with the optional lanyard and silicone protector it can be worn comfortably all shift long.
• Bluetooth 5.0 with 100 m range – Class 1 Bluetooth with BLE for up to 100 m of roaming from the cradle, split-second NFC tap-to-pair with phones and tablets, and Wi-Fi friendly mode that keeps the scanner off the channels used by your Wi-Fi network; an MFi-certified version is available for iOS.
• Full-shift power and Qi charging – the 745 mAh battery delivers up to 18 hours or 13,000 scans per charge, is swapped without tools and has a dedicated battery gauge; contactless inductive charging needs no contact cleaning, and any off-the-shelf Qi pad can charge the scanner.
• Second programmable button – instantly toggle between two host applications, so workers can switch from checkout to inventory and send data in the right format and order.
• Easy to clean – the seamless monocoque housing, inductive-sensing touch buttons and contactless charging leave no crevices for dirt.
• Anti-loss tools and AutoConfig – Virtual Tether alerts you when a scanner is out of range or left out of the cradle for too long, the cradle's paging button finds a misplaced scanner, and AutoConfig stores the scanner settings in the cradle, so a scanner automatically takes on the settings of the cradle it is paired with.
• Smarter data capture – Label Parse+ parses GS1 label data such as expiry dates and lot numbers, Multi-Code Data Formatting (MDF) captures several barcodes with one trigger pull, and Preferred Symbol outputs only the barcode you need.
• Flexible feedback – Direct Decode Indicator, good-decode LED, beeper with adjustable tone and volume, and haptic (vibration) feedback – also on the capacitive trigger.
• Built for all-day use – IP65 sealing against dust and water jets, multiple 1.8 m drops to concrete and 250 tumbles; the scanner and cradle carry a 36-month Zebra warranty.
• Easy to deploy and manage – Zebra DataCapture DNA tools such as 123Scan, Scanner Management Service and Remote Diagnostics; supports more than 90 international keyboards and is FIPS 140-3 compliant.

Ideal Applications

• Retail: mobile point of sale, queue busting and price checks
• Inventory management, cycle counting, receiving and merchandising
• Checkouts, self-service kiosks and service counters – corded with the Gooseneck Intellistand
• Hospitality: concession stands, ticket processing and point of sale
• Transportation and logistics: route accounting
• Light manufacturing: shipping labels and asset tracking

All CS60 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? For cordless scanning at a PC or POS, choose the cradle kit CS6080-SR400004SVW – or CS6080-SR40000TSVW with the wearable lanyard set. CS6080-SR400004QVW with the Qi pad is ideal for scanners paired directly with smartphones or tablets. The scanner-only versions CS6080-SR40004VZWW and CS6080-SR40004VMWW (Apple MFi) are intended as additional or replacement scanners for an existing CR6080 cradle or for direct Bluetooth pairing. For a fixed checkout, choose the corded CS6080-SRK0004VZWW or the stand kit CS6080-SR40000KSVW. Working in a hospital? See the Zebra CS60-HC with its disinfectant-ready white housing. Compare other models in our Cordless / Wireless Barcode Scanners collection or contact our team for volume pricing.
