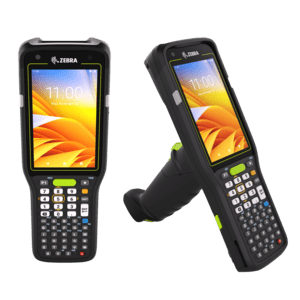

Zebra MC3450 Terminal (MC345B-3G1M53SS-A6)

The Zebra MC3450 is the next generation of Zebra's best-selling MC3000 series – a rugged, key-based Android mobile computer for warehouses, manufacturing, retail backrooms, ports and yards. It combines a physical keypad with a 4" touchscreen, an enterprise-class scan engine, Wi-Fi 6E, a Qualcomm 4490 octa-core processor, a hot-swappable 7000 mAh battery and IP65/IP67 sealing, and runs green-screen apps out of the box with preinstalled Ivanti Velocity terminal emulation. This version, MC345B-3G1M53SS-A6, is the MC3450 with 5G mobile data (Nano SIM + eSIM) and GPS. Configuration: gun (pistol grip) with scan trigger, the SE58 extended-range imager with IntelliFocus (up to 30.5 m), 6 GB RAM / 64 GB Flash (Expanded configuration), a 38-key function numeric keypad.

Key Features

• The next-generation MC3000 – look and feel are nearly identical to the MC3300 series, so users need practically no training, and existing MC33 charging cradles and battery chargers can be reused.

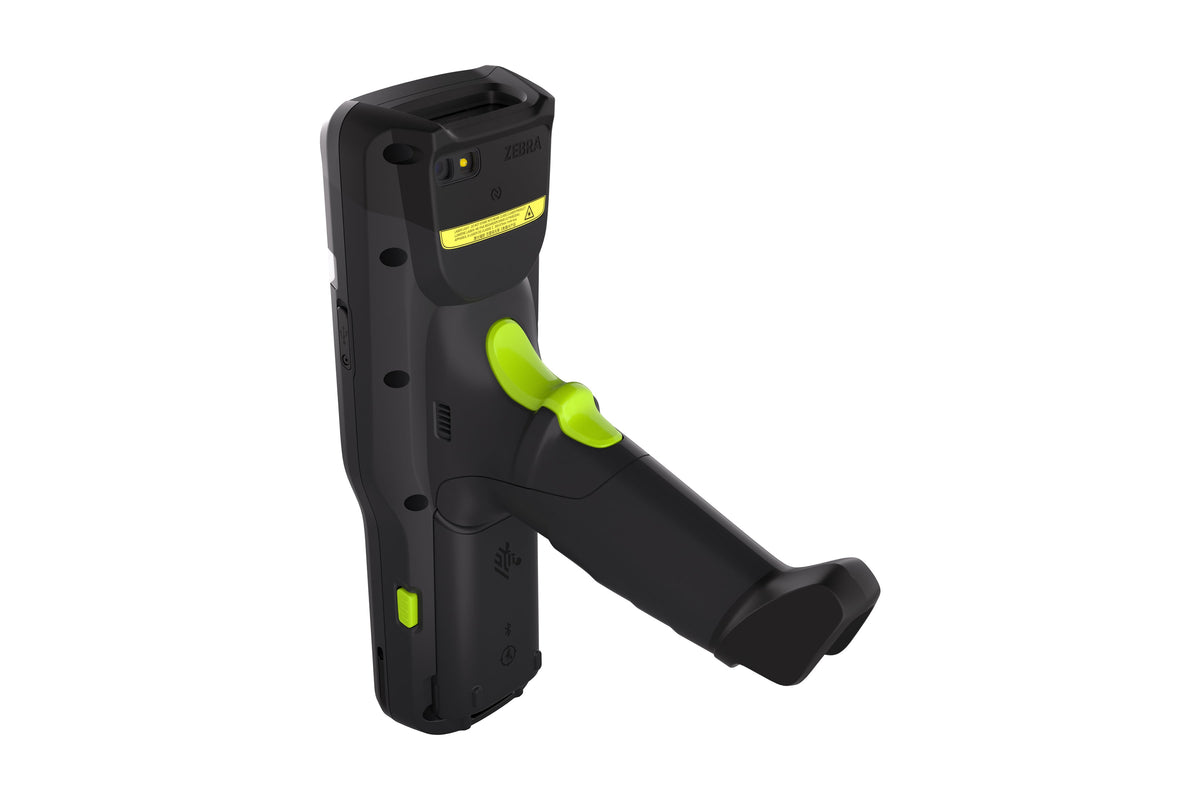

• Gun form factor – ergonomic pistol grip with scan trigger for comfortable, scan-intensive work all shift long, at shelf and pallet level.
• Choose your scan range – this version has the SE58 extended-range imager with IntelliFocus (up to 30.5 m – ideal for containers in ports and yards); every engine captures virtually any barcode, damaged or poorly printed, on the first try.

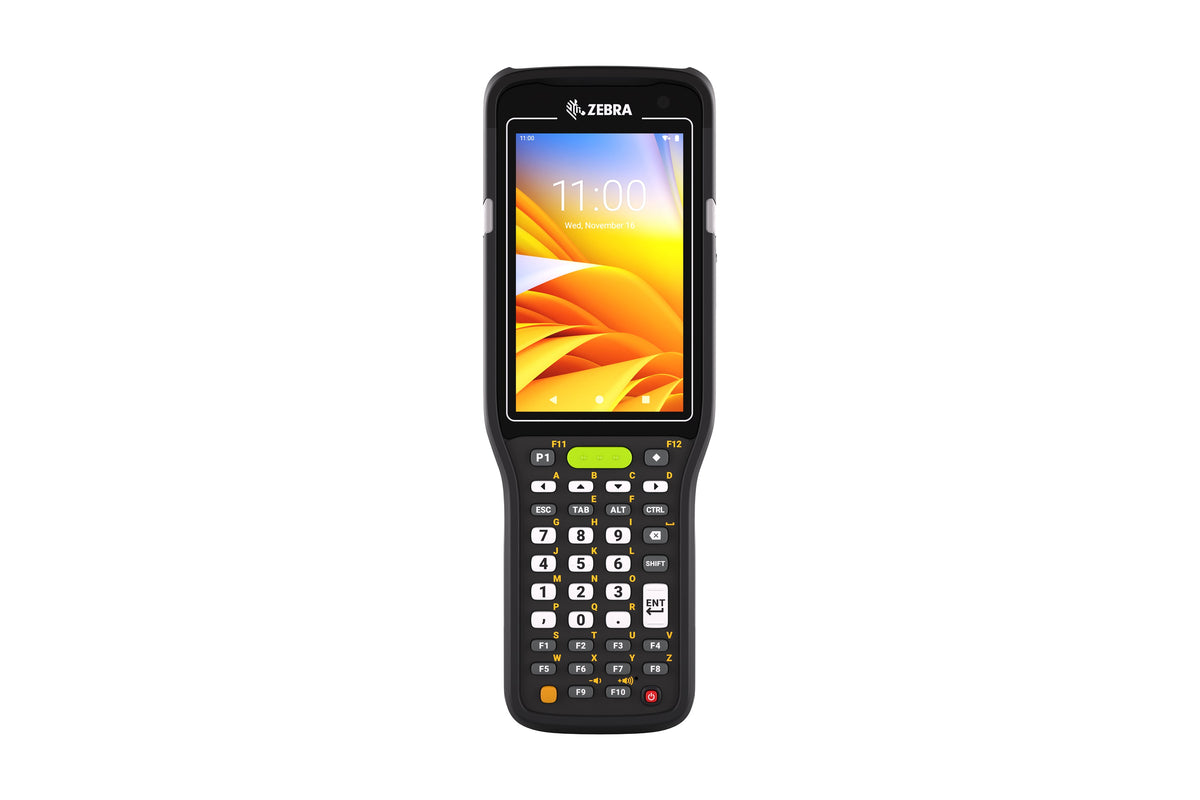

• Easier data entry, even with gloves – larger keys with more space between them; choose a 29-key numeric, 38-key function numeric or 47-key alphanumeric keypad (this version: 38 keys, function numeric).
• 5G, Wi-Fi 6E and GPS – public and private 5G/LTE (data), Nano SIM + eSIM for two networks, dual-band GNSS and eCompass – connected from the production floor to vast outdoor yards.
• 2.5x more processing power – Qualcomm 4490 octa-core 2.4 GHz processor, up to 6 GB RAM / 128 GB Flash and microSD up to 2 TB; Android with GMS and support for future Android versions.
• Focused on scanning – this configuration has no cameras; choose a Full configuration (6 GB / 128 GB) for the 13 MP + 5 MP cameras.
• The most rugged MC3000 ever – IP65/IP67 dust- and waterproof (can be submerged and hosed down), 1.8 m drops to concrete across the full temperature range, 4,000 tumbles at 1 m, −20 °C to +50 °C.
• All-shift power – 7000 mAh PowerPrecision+ battery with hot swap and session persistence; the optional BLE battery lets Device Tracker find lost devices even when they are switched off.
• Terminal emulation out of the box – Ivanti Velocity preinstalled and pre-licensed, plus Staylinked SmartTE to modernise green-screen apps; Zebra DNA tools for staging, DataWedge and device management.

Ideal Applications

• Warehousing: picking, put-away, cross-docking, receiving, shipping and inventory control
• Manufacturing: line-side replenishment, work-in-process, material tracking and quality control
• Ports, yards and transport: container, rail car and asset tracking, yard management
• Retail backrooms: store receiving, price verification, online order fulfilment and returns
• Cold, harsh and wet environments (down to −20 °C) thanks to IP65/IP67 sealing
• Upgrading MC3300/MC3300ax fleets with the same accessories and familiar keypad workflows

All MC3400/MC3450 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

The MC3450 belongs to the MC3400/MC3450 series – the successor to the MC3300ax and MC3300x. Working on-site only? The Zebra MC3400 (MC3401-0G1M53SS-A6) is the more affordable Wi-Fi-only sister model. Existing MC33 charging cradles and battery chargers can be reused; for the previous generation, see the Zebra MC3300ax and Zebra MC3300x. Need a tougher device for all-day warehouse or field use? Step up to the Zebra MC9400. Compare all models in our Handheld Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
