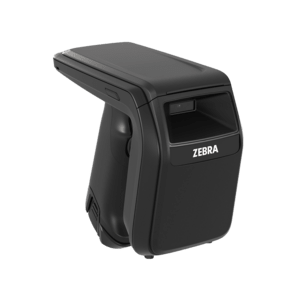

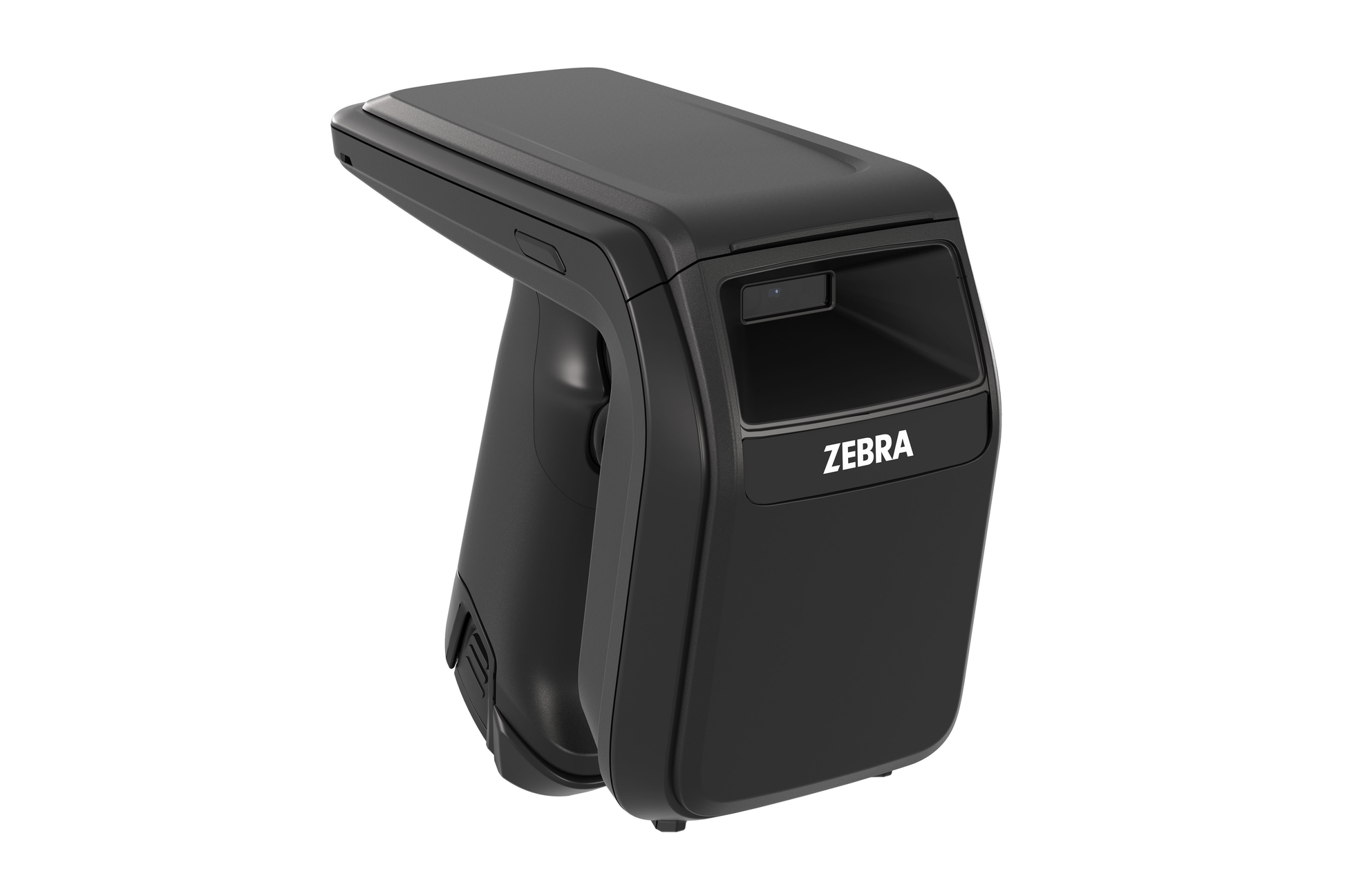

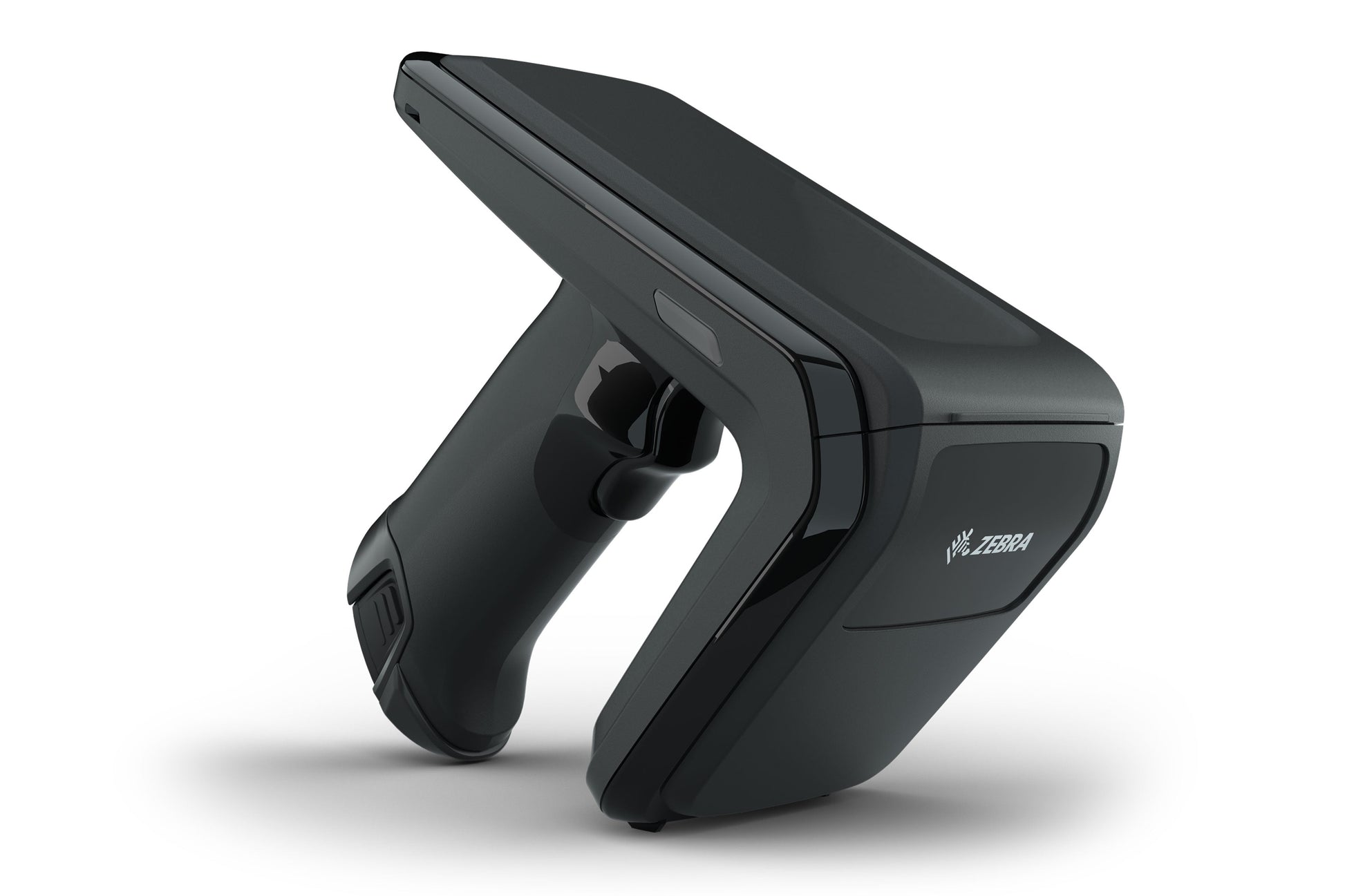

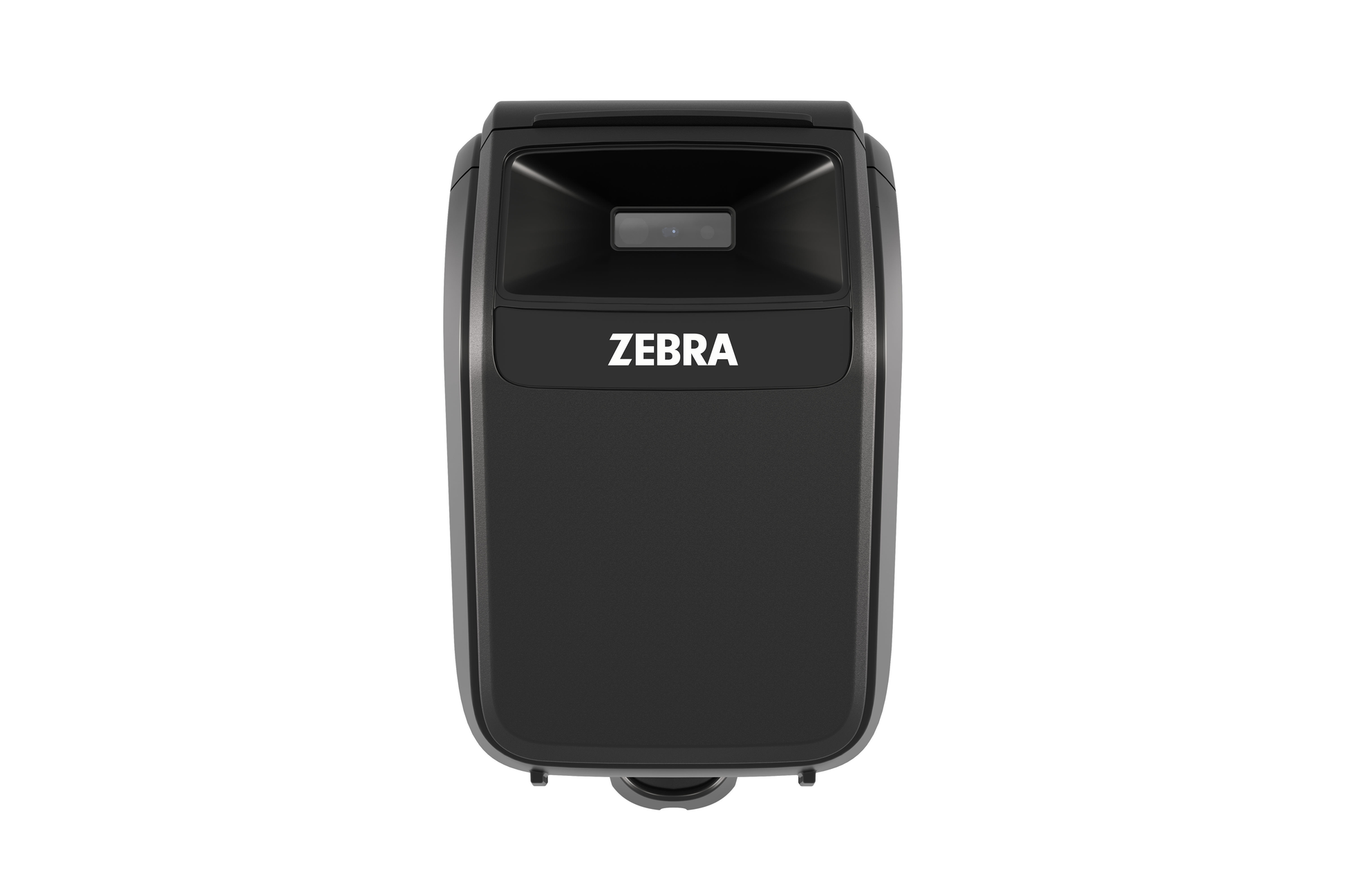

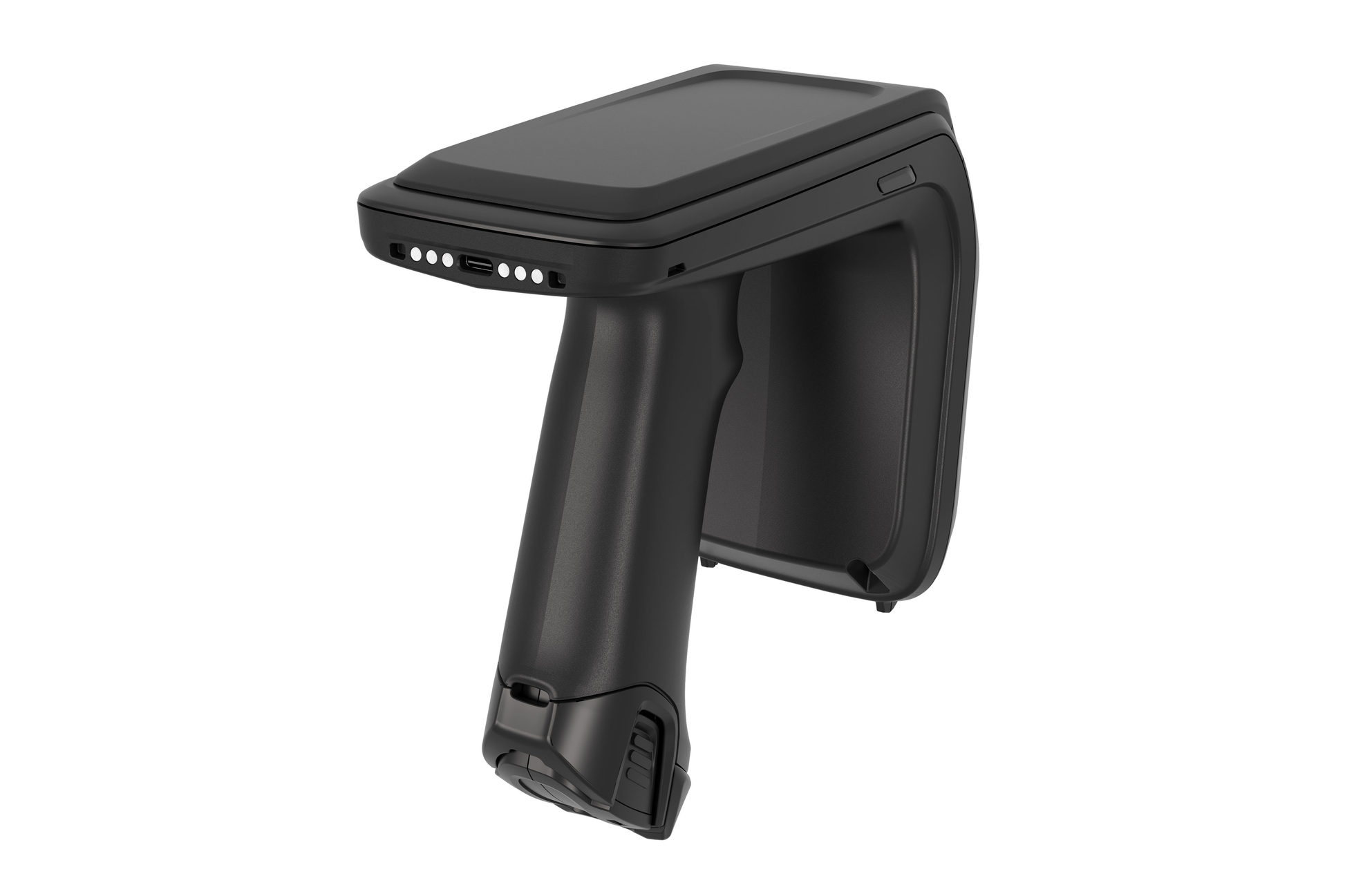

Zebra RFD40-M RFID Barcode Scanner (RFD4051-G10B700-WR)

The Zebra RFD40-M Premium Plus is the extended-range version of Zebra's RFD40 UHF RFID sled. It snaps onto a Zebra mobile computer (or pairs with a smartphone) and turns it into a powerful RAIN RFID reader: a linear polarized antenna with a maximum read range of up to 24 metres, more than 1,300 tag reads per second and an ultra-accurate item-finder mode – ideal for high shelves, warehouse racking and large back-of-store areas. It connects via Zebra eConnex™ or Bluetooth 5.3, adds Wi-Fi 6 for over-the-air management, scans barcodes with its own SE4100 1D/2D imager and runs on its own quick-release 7000 mAh battery. This version, RFD4051-G10B700-WR, works in the 902–928 MHz UHF band (900 MHz worldwide version – not the EU model).

Key Features

• Extended read range – the linear polarized antenna reaches tags up to 24 m (80 ft) away, so you can count high shelves, racking and large stockrooms without climbing or walking every aisle.
• Fast RAIN RFID reading – more than 1,300 tag reads per second (up to 30% faster than the next leading competitor, according to Zebra) plus an ultra-accurate item-finder mode for locating individual items.
• Integrated SE4100 1D/2D imager – scan barcodes with the sled itself (1280 × 960 pixel sensor, 44.5° × 33.5° field of view, green LED aimer), including damaged, low-contrast and on-screen codes.
• eConnex, Bluetooth 5.3 and Wi-Fi 6 – snap-and-go eConnex connection to Zebra mobile computers, Bluetooth (NFC tap-to-pair; SPP, HID and Apple iAP2/MFi profiles) for devices without eConnex and third-party Android or iOS smartphones, and Wi-Fi 6 for over-the-air device management.
• Tri-function trigger – one trigger for RFID reading, barcode scanning and a programmable third function such as the Enter key or push-to-talk.
• Long-lasting power – the quick-release PowerPrecision+ 7000 mAh battery can be changed without removing the mobile computer; an optional battery locking foot keeps it in place.
• Batch mode – no live connection to your back-end system? Store up to 40,000 tags in the sled and sync them to the host later.
• Flexible charging – RFD40 ShareCradles charge the sled, the mobile computer or both together; the USB-C port or snap-on cable cup also lets it work as a tethered RFID reader on a Windows PC.
• Built for daily use – multiple 1.5 m drops to concrete, 500 tumble cycles, IP54 sealing against dust and water, and an operating range of −10 °C to 50 °C.
• Easy integration – Zebra RFID SDKs are based on the existing Zebra RFID handheld SDKs (only a recompile is needed); 123RFID Desktop connects via USB, cable cup or Bluetooth for configuration and firmware updates; Gen2X is supported.

Ideal Applications

• Retail – cycle counting, item finding, planogram compliance, returns and click-and-collect (BOPIS)
• Warehouse and back-of-store inventory management, direct store delivery and route accounting
• Healthcare – specimen and patient tracking, hospital asset management and pharmacy management
• Hospitality and events – check-in, ticketing and loyalty cards
• Food safety and traceability, field service and asset tracking

All RFD40-M Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

RFD40-M or RFD40? Choose the RFD40-M when you need maximum reach – high shelves, warehouse racking and large stockrooms; for everyday cycle counting at closer range, the more compact RFD40 Premium Plus is the alternative. In Europe, choose the -E8 version (865–868 MHz), and remember to add the adapter for your mobile computer and a charging solution. Looking for an all-in-one device instead? See our RFID Handheld Terminals, compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
