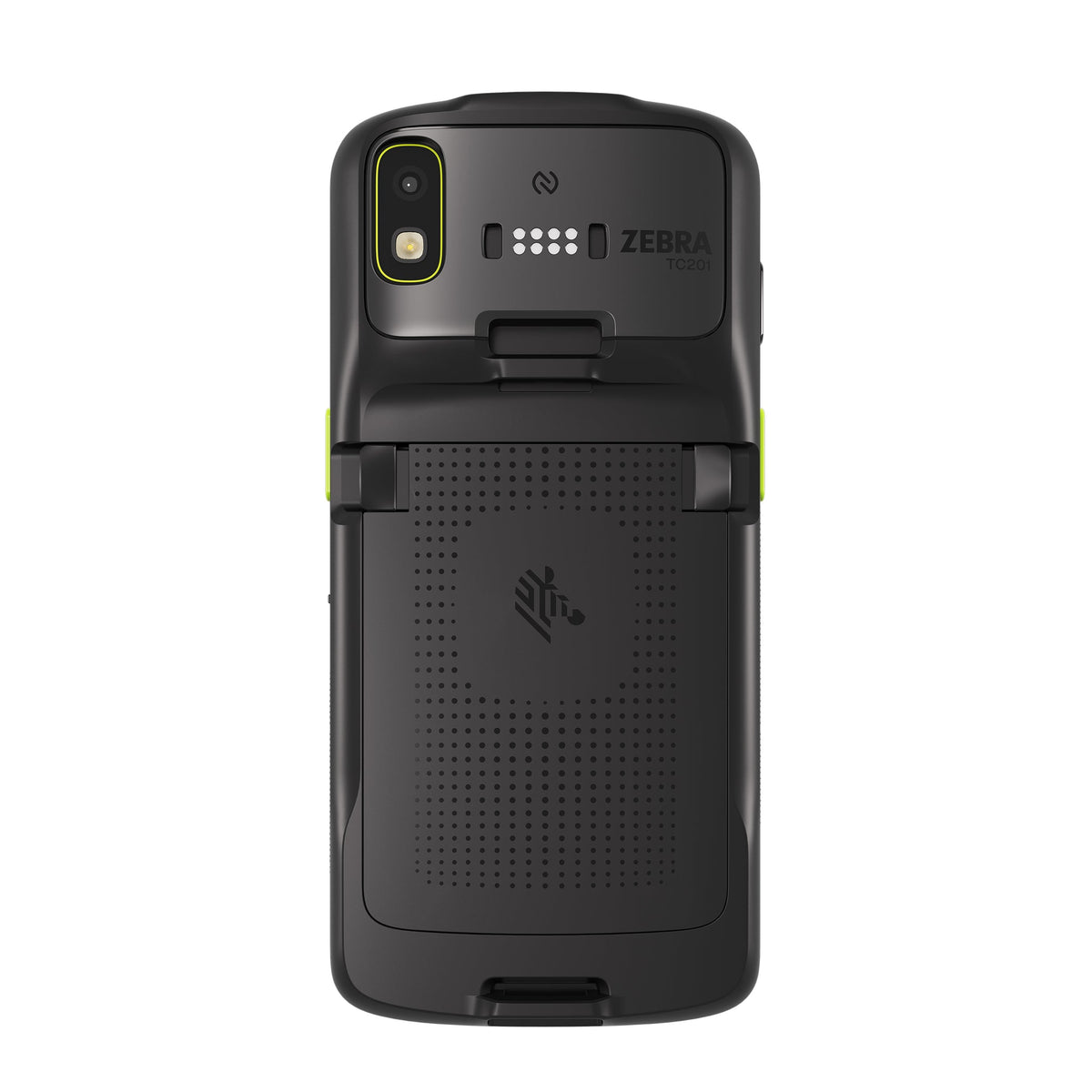

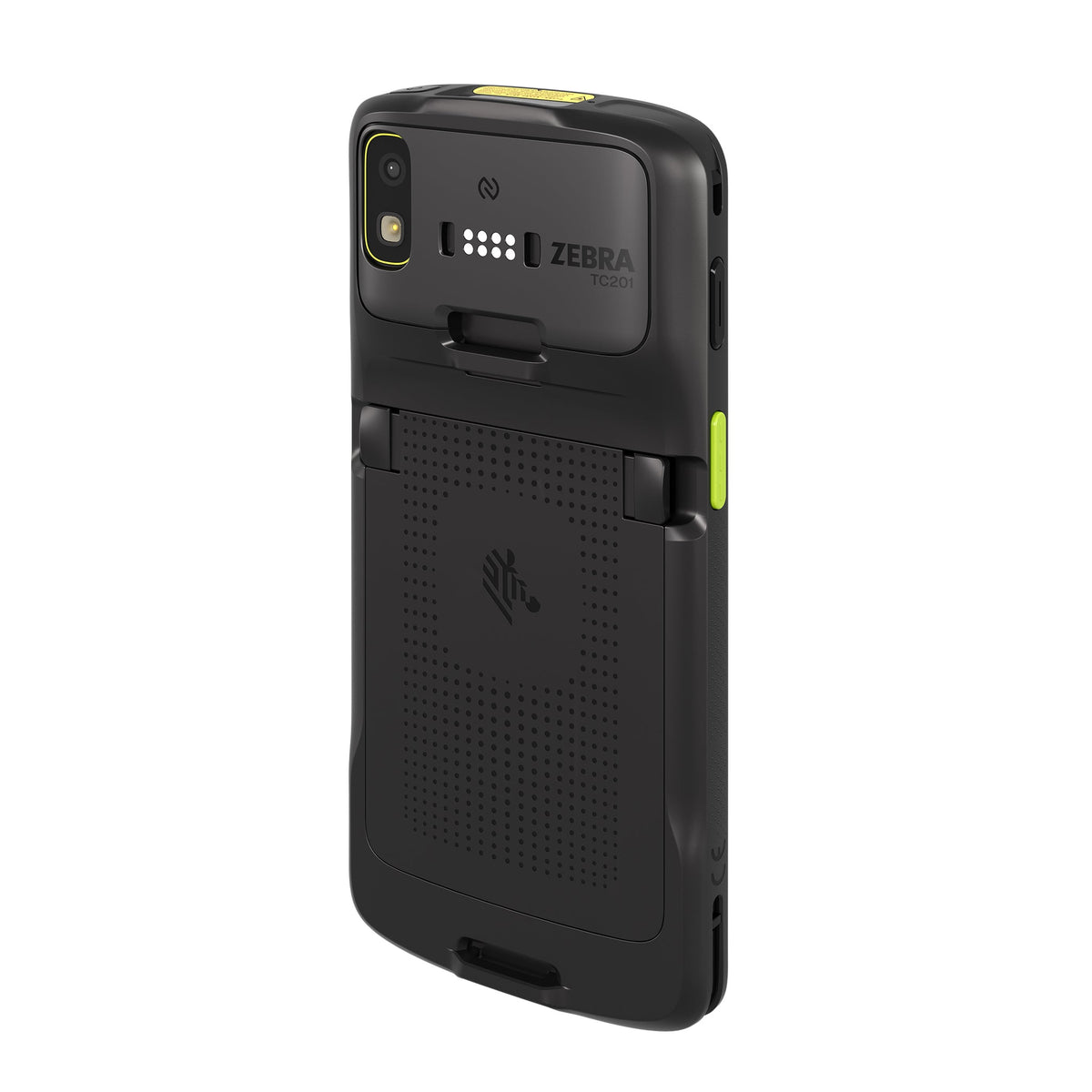

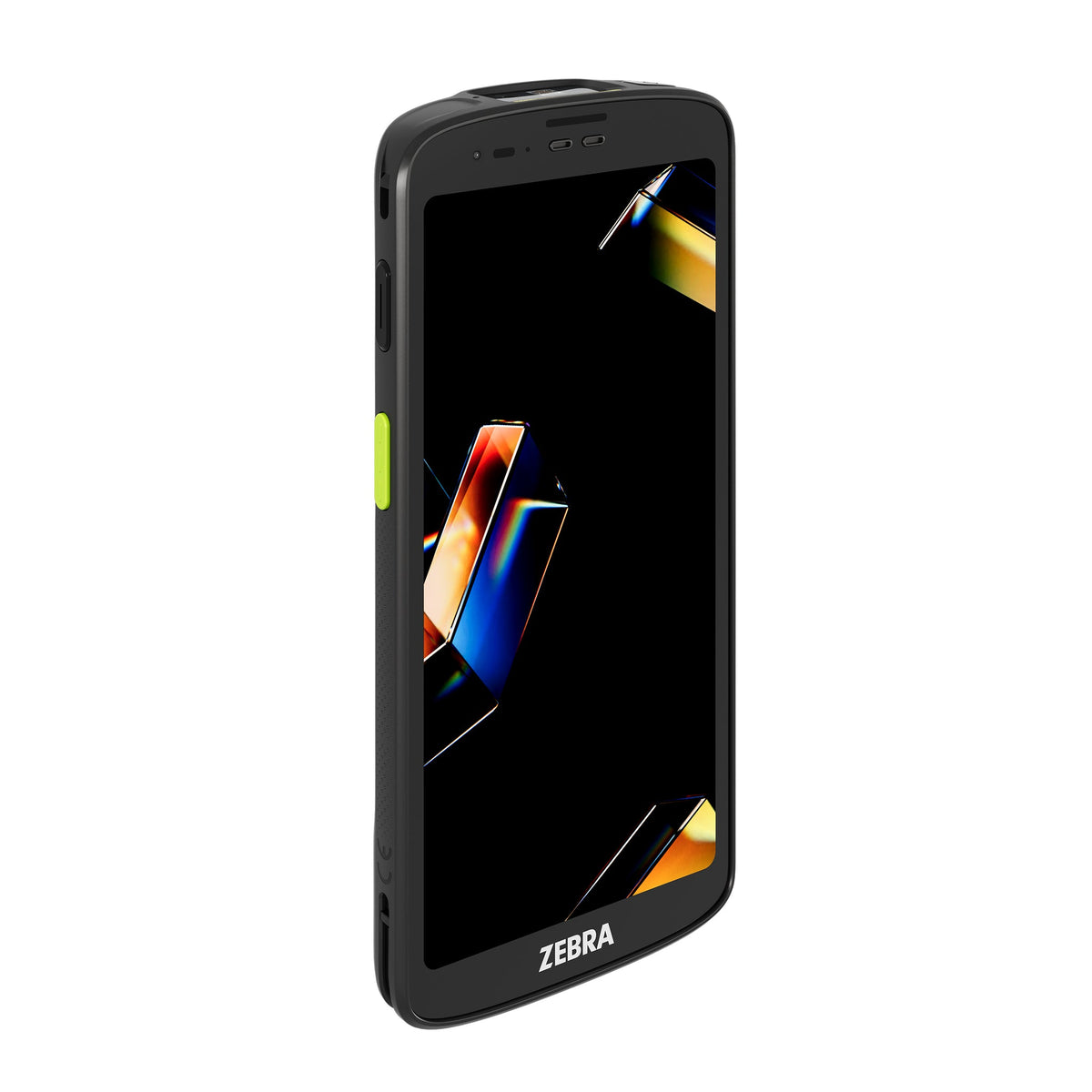

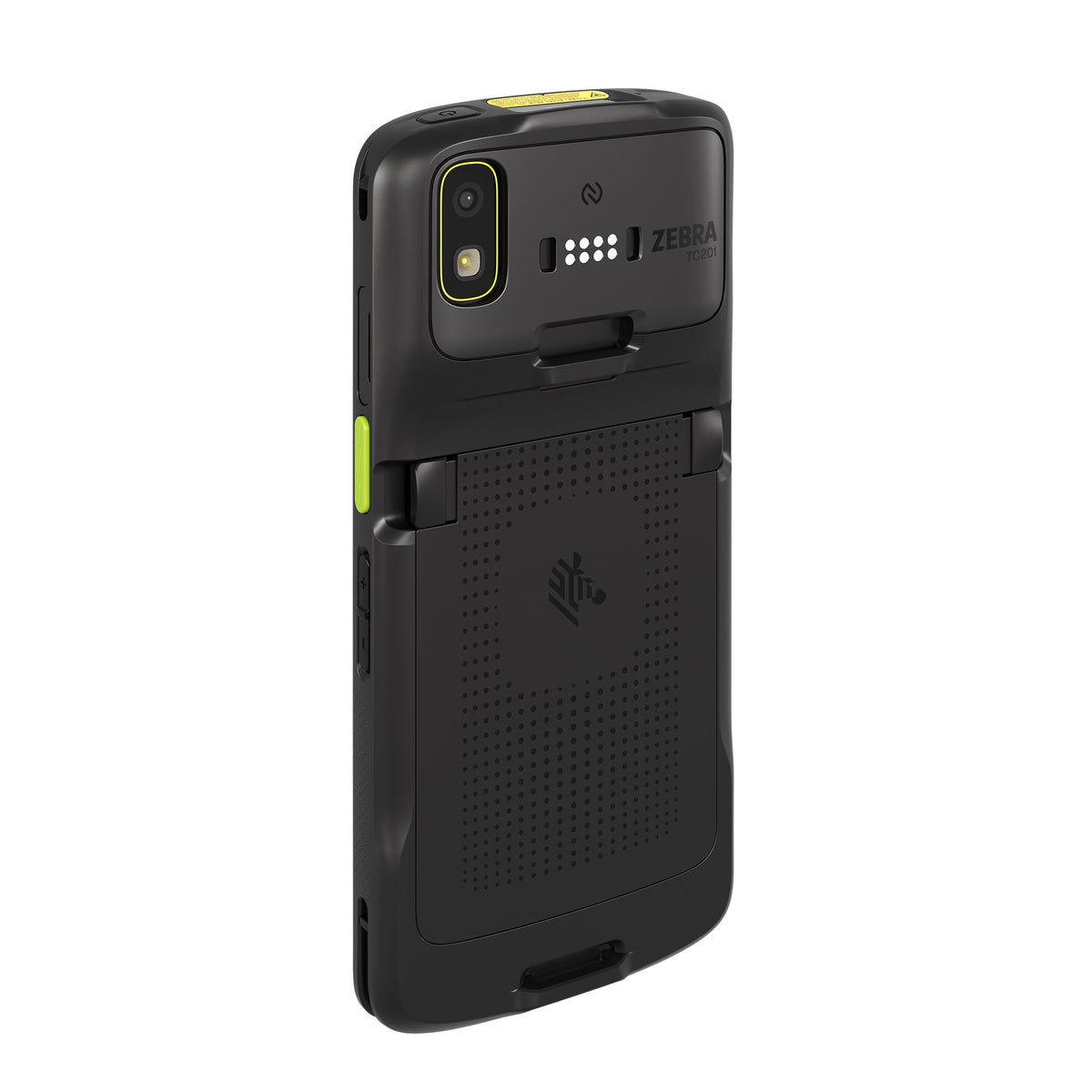

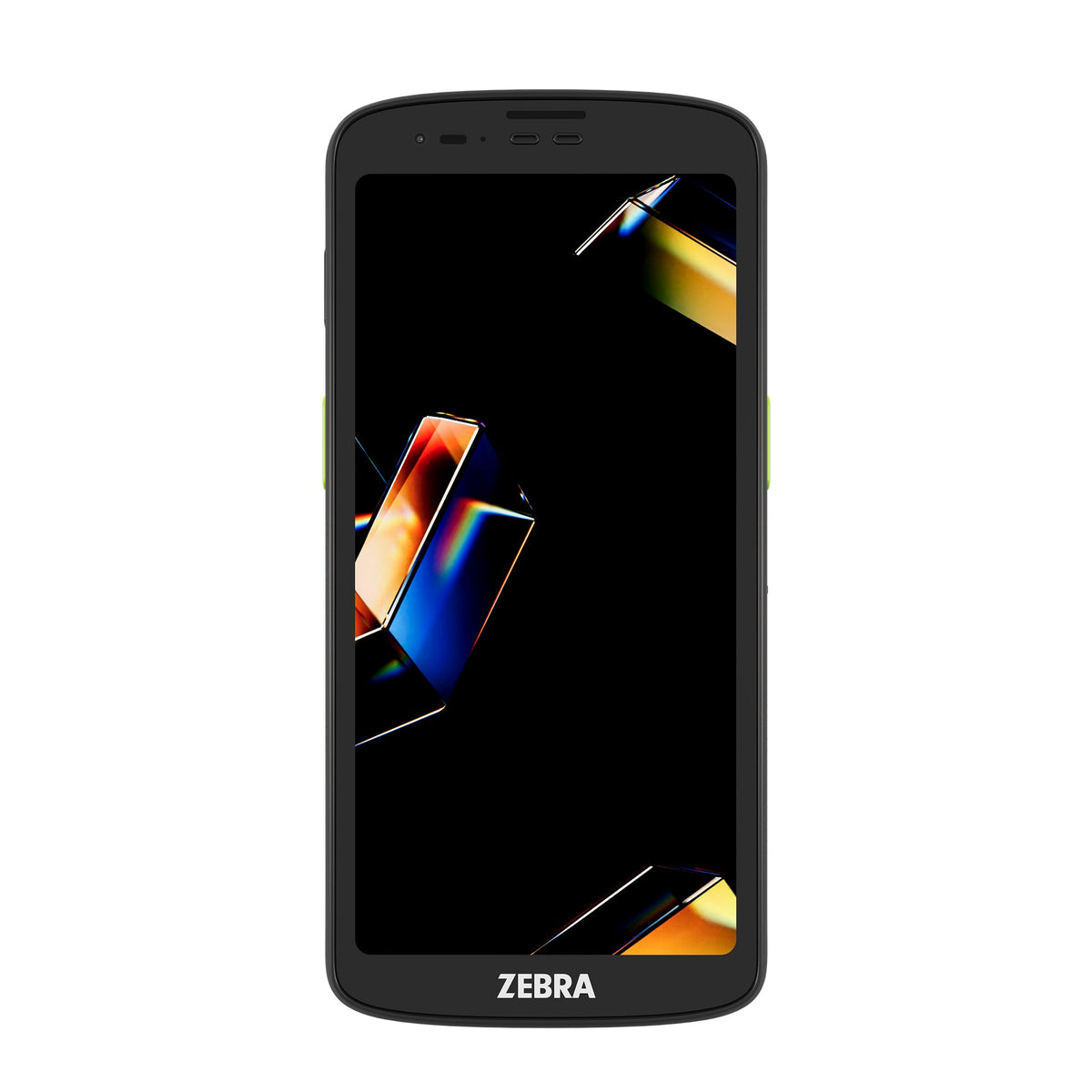

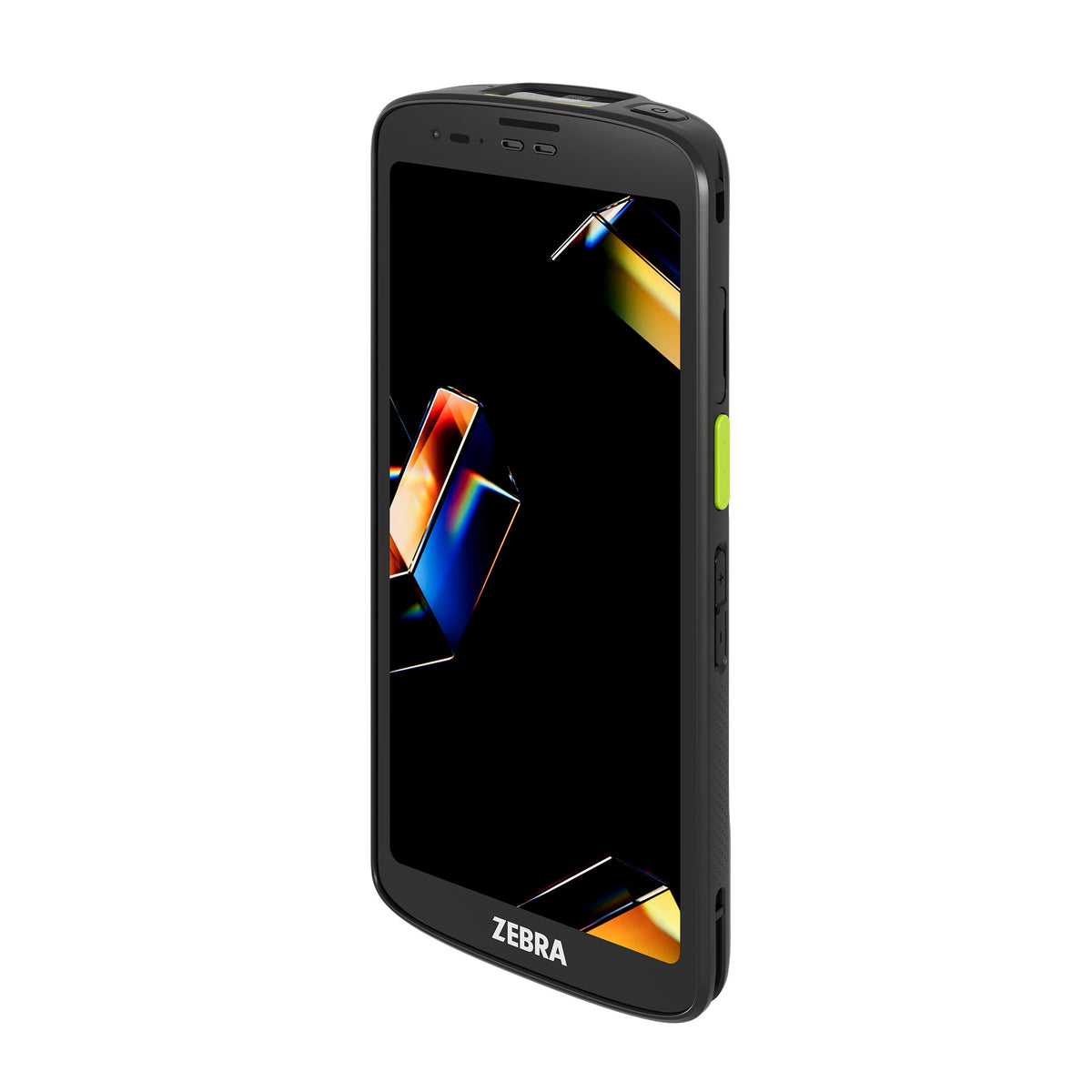

Zebra TC201 Terminal (TC2010-083P4BA01-A6)

The Zebra TC201 is the next generation of Zebra's smartphone-style TC2x mobile computers – a rugged Android device for the AI-powered frontline in retail, warehousing, transport and logistics, and field service. A 6" Full HD+ touchscreen, the Qualcomm Dragonwing Q-6690 platform with up to 150% more performance than previous TC2x devices, Wi-Fi 7, Bluetooth 6.0 and NFC come together in a slim 12.5 mm, 245 g device with IP68/IP65 sealing and a removable PowerPrecision battery. This version, TC2010-083P4BA01-A6, is the Wi-Fi 7-only model. Configuration: 8 GB RAM / 128 GB Flash, the SR500 scan engine, a standard 3800 mAh battery, an 8-pin back I/O connector, a Secure Element (Android StrongBox).

Key Features

• Next-generation performance – Qualcomm Dragonwing Q-6690 platform up to 2.0 GHz with up to 150% more performance than previous TC2x devices, 8 GB LPDDR5 RAM / 128 GB UFS 3.1 Flash and microSD up to 2 TB.
• 6" Full HD+ touchscreen – 2160 × 1080, 450 nits, optically bonded and protected by Corning Gorilla Glass; works with bare or lightly gloved fingers, rejects water droplets and resists fingerprints.
• Enterprise barcode scanning – dual programmable scan buttons and the SR500 1D/2D scan engine behind a Gorilla Glass exit window capture damaged and poorly printed barcodes quickly and reliably.
• Wi-Fi 7-only model – the cost-effective choice for stores, warehouses and sites with Wi-Fi coverage; choose a TC201G version for 5G.
• Fastest wireless – tri-band Wi-Fi 7 (2.4/5/6 GHz, 2x2 MU-MIMO, MLO), Bluetooth 6.0 with a chipset-based BLE beacon to locate lost devices, and NFC with contactless payment support (Apple VAS, Google Smart Tap, Google Wallet).
• Rugged for everyday work – IP68/IP65 sealed, 1.83 m drops to concrete at room temperature (2.13 m with the rugged boot) and 750 tumbles – 50% more than the TC22/TC27 – exceeding MIL-STD-810H.
• All-shift power – removable 3800 mAh PowerPrecision battery with real-time battery health metrics; optional 5200 mAh extended battery; the same batteries as the TC22/TC27.
• Cameras and voice – 16 MP autofocus rear camera with LED flash and 5 MP front camera; stereo speakers, two microphones, a dedicated push-to-talk button and HD voice.
• Secure and manageable – Secure Element with Android StrongBox, FIPS 140-3 validated, Common Criteria certified, Secure Boot and Verified Boot; Android Enterprise Recommended and Zebra DNA tools for staging, device management, DataWedge and Workstation Connect.
• Fits your existing fleet – shares batteries, hand strap, soft holster, trigger handle and arm mounts with the TC22/TC27; legacy TC21/TC26 ShareCradles can be converted with TC201 replacement cups.

Ideal Applications

• Retail: price and stock checks, click & collect, mPOS and line busting
• Warehouse and light manufacturing: receiving, picking, replenishment and inventory counts
• Transport and logistics: loading, proof of delivery and payment on delivery
• Field service: work orders, asset checks, photo documentation and invoicing
• Hospitality and events: ticket scanning, order taking and mobile payment
• Small and mid-size businesses replacing consumer smartphones with a rugged, manageable device

All TC201 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

The TC201 is the next generation of Zebra's TC2x series and the successor to the TC22/TC27. Need mobile data on the road? The Zebra TC201 (TC201G-383P4BA01-A6) adds 5G and GPS. Need a tougher device for all-day warehouse or field use? Step up to the Zebra TC501. Compare all versions on our Zebra TC201 page, browse Handheld Terminals, or contact our team for volume pricing, staging and MDM set-up.
