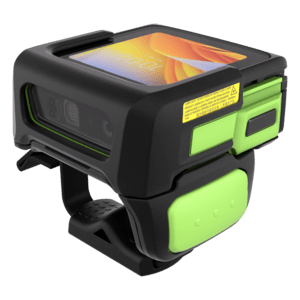

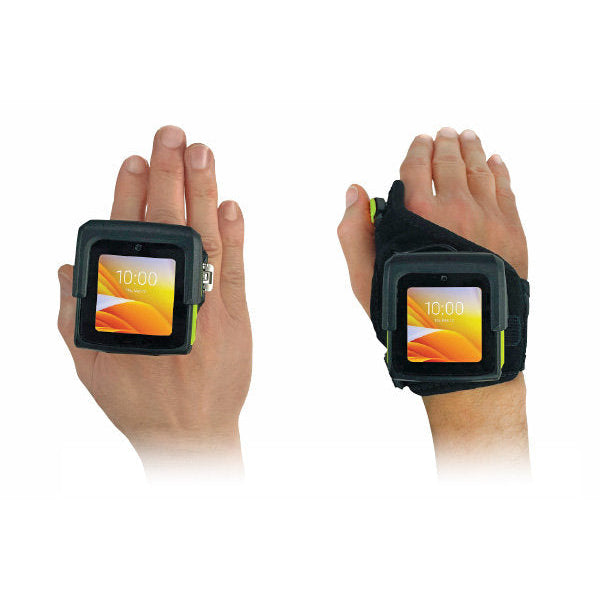

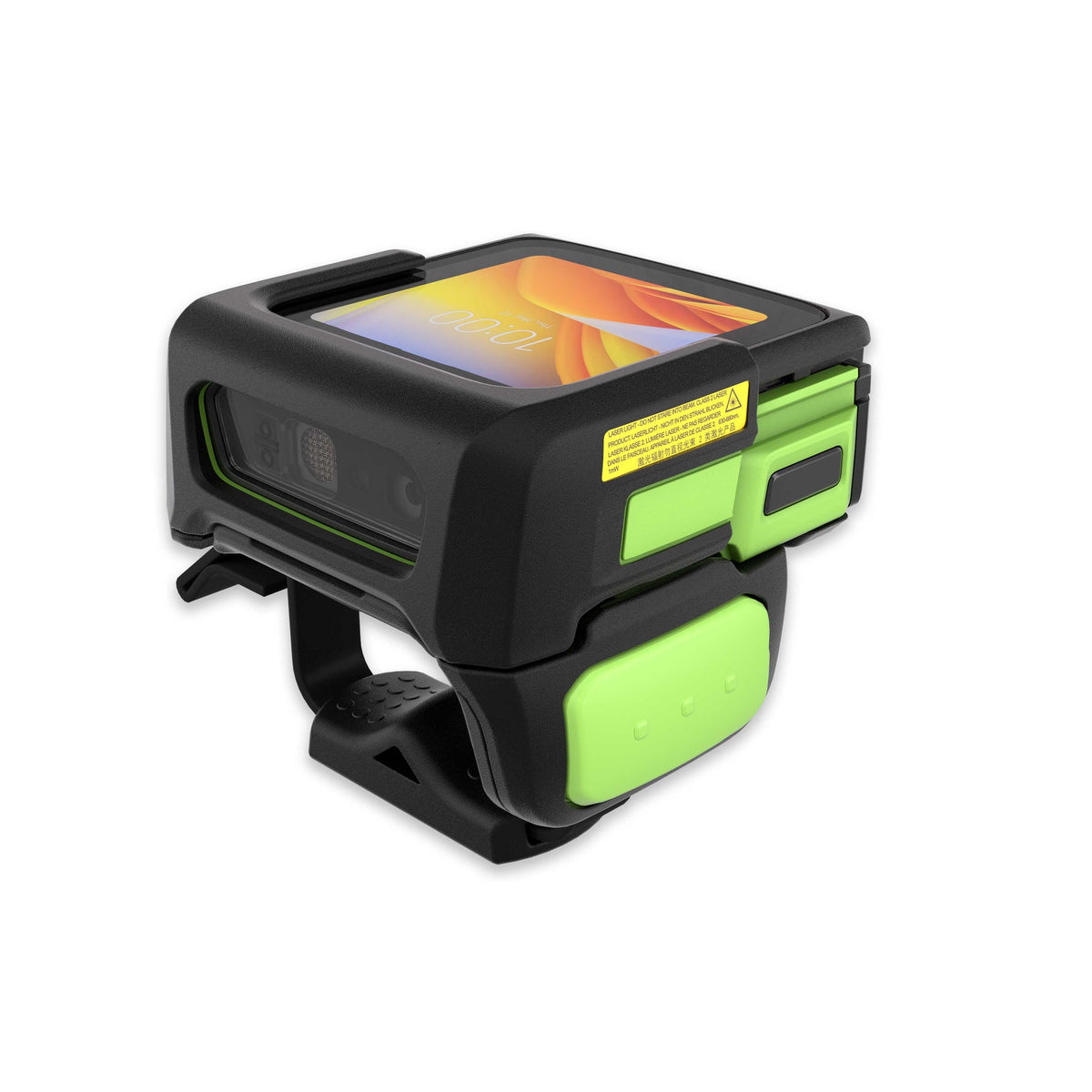

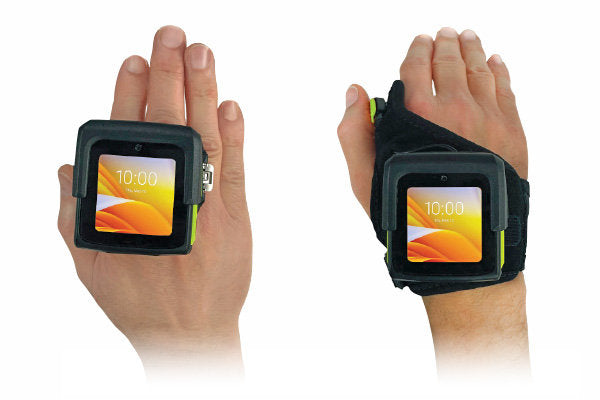

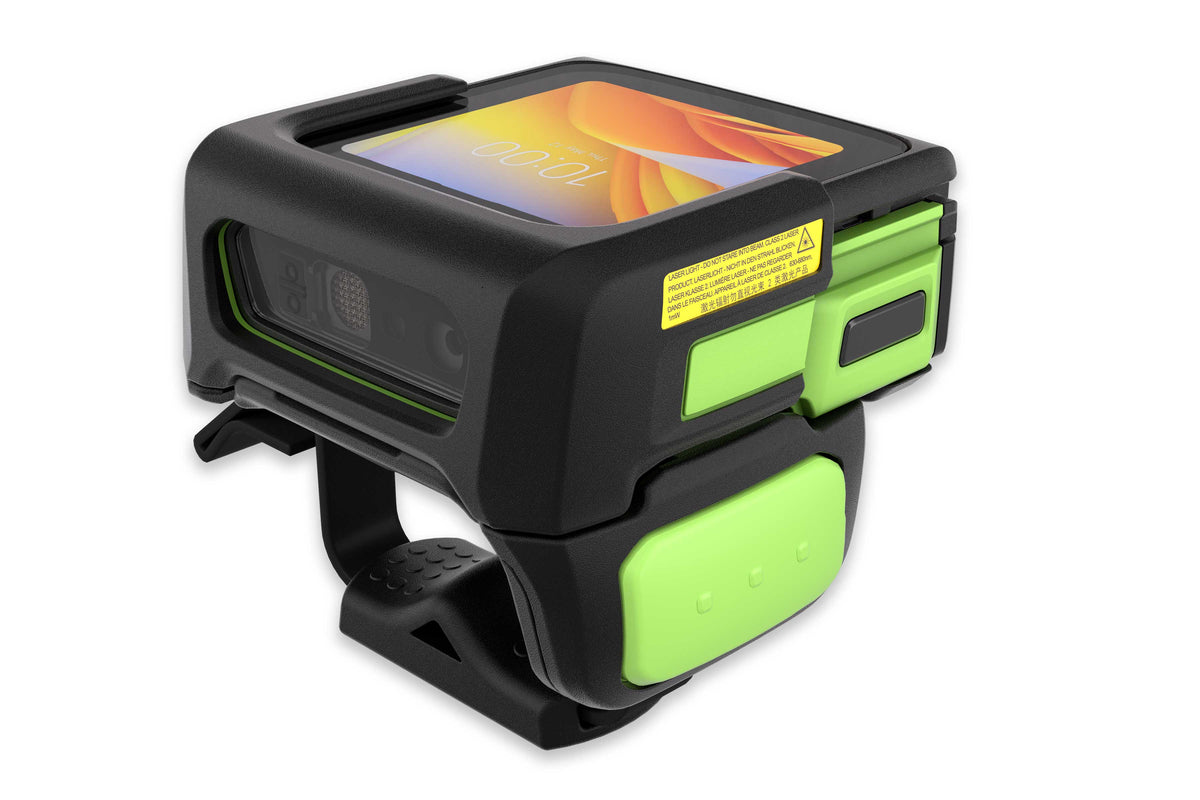

The Zebra WS501 is the successor of the WS50 and the world's smallest all-in-one Android enterprise wearable computer, built for the most scan-intensive jobs such as order picking, put-away, sorting and truck loading. It combines Zebra's SE4770 1D/2D imager, a 2" AMOLED touchscreen, Wi-Fi 6, Bluetooth 5.3, NFC and 3 GB RAM / 32 GB Flash in a 134 g device with a hot-swap battery. This version, WS5012-0F3J1020EA6, is worn on two fingers with the ring-style trigger mount.
📦 What's in the box – WS5012-0F3J1020EA6
- ✅ Zebra WS501 – two-finger, SE4770, 2" AMOLED, Wi-Fi 6, Bluetooth, NFC
- ✅ Battery – standard 1300 mAh Li-ion, user-replaceable (BTRY-WS5X-13MA-01)
- ❌ Charging cradle – NOT included – needed to charge the battery – see the options below
- ❌ USB charging cable – NOT included – USB charging and communication cable – see the options below
⚠️ Please note: no charger, charging cable or cradle is included. To charge the WS501, please order separately: the Zebra CRD-WS5X-2SCV-01 charging cradle with the Zebra PWR-BGA12V50W0WW power supply, the Zebra CBL-DC-388A1-01 DC cable and the Zebra 50-16000-220R mains cord; or the Zebra CBL-WS5X-USBA-01 USB charging and communication cable, connected to a PC or a USB power adapter such as Zebra PWR-WUA5V12W0EU.
💡 Useful extras: a spare battery for hot-swapping (Zebra BTRY-WS5X-13MA-01); multi-slot charging cradles for teams (Zebra CRD-WS5X-10SCV-01 or Zebra CRD-WS5X-5SECV-01); spare battery chargers (Zebra SAC-WS5X-4S13-01 or Zebra SAC-WS5X-20S13-01); screen protectors (Zebra SG-WS5X-SCRNP1-01).
Interactive 3D Model
Drag to rotate, scroll or pinch to zoom. Official Zebra 3D viewer – open in full screen ↗
Key Features
- No host required – scanner, touchscreen computer and voice device in one wearable; workers carry nothing else.
- More power than the WS50 – new Qualcomm platform, triple the RAM (3 GB) and four times the Flash (32 GB) to run several demanding apps at once.
- SE4770 enterprise imager – captures damaged or poorly printed 1D/2D barcodes in motion, with Multi-Code Data Formatting and NG SimulScan for multiple labels.
- Fastest wireless – Wi-Fi 6 (2x2 MU-MIMO) with Zebra Wireless Fusion, Bluetooth 5.3 for headsets and printers, NFC tap-to-pair.
- Rugged and compact – IP65, 1.8 m drops to tile over concrete, 2,000 tumbles, replaceable front shell and a 2" AMOLED display readable in any light.
- Full-shift power – 1300 mAh PowerPrecision battery, hot swap in seconds without powering down, fast charging in under three hours.
Ideal Applications
- High-volume order picking and put-away
- Sorting, loading and unloading in parcel and logistics hubs
- Receiving and replenishment in warehouses and distribution centres
- Manufacturing line-side and kitting operations
- Any scan-intensive workflow where both hands must stay free
All WS501 Versions
The highlighted row is the version you are currently viewing.
| Part Number | Wearing Style | Scan Engine | Battery | |
|---|---|---|---|---|
| WS5012-0F3J1020EA6 (this version) | Two-finger | SE4770 | 1300 mAh | Viewing |
| WS5012-0B3J1020EA6 | Back of hand | SE4770 | 1300 mAh | View product |
Technical Specifications
| Part Number | WS5012-0F3J1020EA6 |
|---|---|
| Model | Zebra WS501 Android wearable computer |
| Wearing Style | Two-finger mount (ring-style trigger) |
| Operating System | Android 14 (supported versions per Zebra Android lifecycle) |
| Processor | Qualcomm QCS2290 quad-core 2.0 GHz |
| Memory (RAM / Flash) | 3 GB RAM / 32 GB Flash |
| Display | 2" AMOLED, 460 × 460, optically bonded, Corning Gorilla Glass |
| Touch Panel | Capacitive, fingertip and glove support |
| Buttons | 2 programmable buttons + ambidextrous trigger |

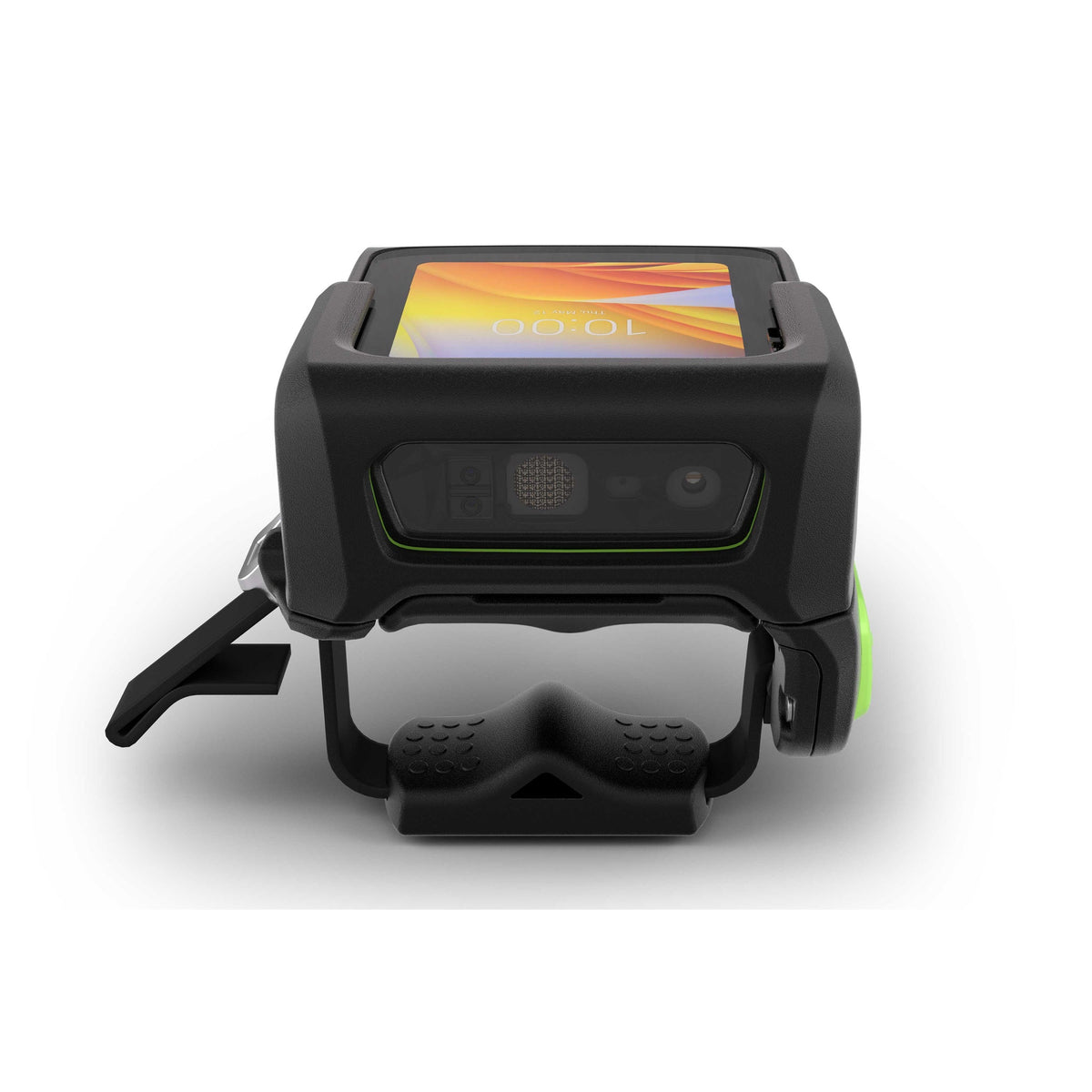

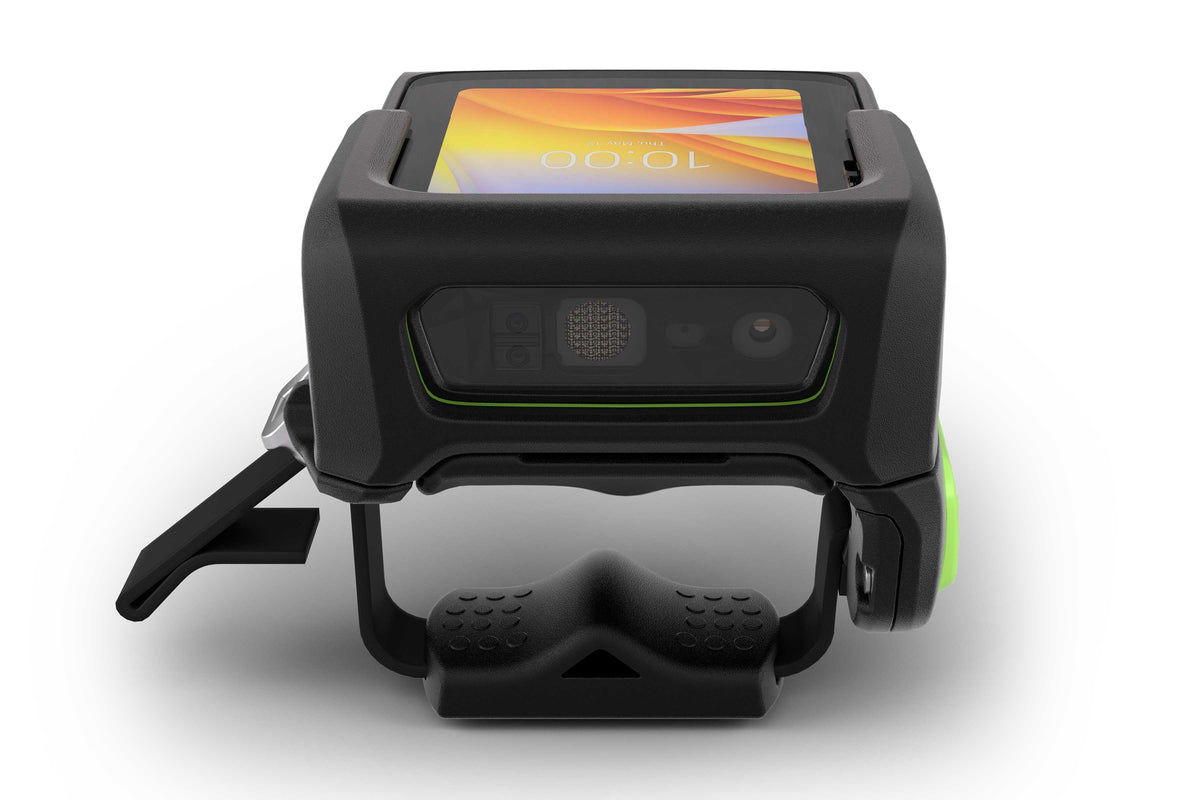

| Scan Engine | SE4770 1D/2D standard range omnidirectional imager, 1280 × 800, 48° × 30° field of view; manual trigger |
| Wi-Fi | Wi-Fi 6, IEEE 802.11a/b/g/n/ac/ax, 2x2 MU-MIMO; WPA3; fast roaming 802.11r / OKC |
| Bluetooth | Bluetooth 5.3 (BR/EDR + BLE), Class 1 |
| NFC | Tap to pair; ISO 14443, ISO 15693, FeliCa; HCE |
| Mobile Data (WWAN) | Not available – Wi-Fi only |
| Voice & Audio | Speaker (90 dBA), microphone, PTT, Bluetooth headset support |
| Ports | Docking contacts; USB 2.0 host/client and charging via interface cable |
| Sensors | Light sensor, 6-axis accelerometer with gyroscope |
| Battery | 1300 mAh / 5 Wh PowerPrecision Li-ion, hot swap (2 minutes) – BTRY-WS5X-13MA-01 |
| Charging | Via charging cradle or USB charging cable (not included); full charge in under 3 hours |
| Dimensions | 64 × 62 × 28 mm |
| Weight | 134 g |
| Drop Spec | 1.8 m to tile over concrete across the operating temperature range |
| Tumble Spec | 2,000 tumbles at 0.5 m |
| Sealing | IP65 |
| Operating Temperature | −10 °C to +50 °C |
| Storage Temperature | −40 °C to +70 °C |
| Humidity | 5–95% non-condensing |
| Colour | Black |
| Warranty | 12 months (Zebra 1-year hardware warranty); Zebra OneCare service plans available from Zebra |
| In the Box | Zebra WS501 two-finger wearable computer (WS5012-0F3J1020EA6, SE4770 imager), 1300 mAh battery (BTRY-WS5X-13MA-01) – charging cradle / USB charging cable and power supply NOT included (order separately) |
The WS501 replaces the WS50 converged models; for integrated UHF RFID choose the WS501-R. Related Zebra wearables: Zebra WS50, Zebra WS501-R and Zebra WS301. Compare all models in our Handheld Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
Available Versions
| Part Number | Form Factor | Price | ||
|---|---|---|---|---|
 |
WS5012-0B3J1020EA6 | Back of hand | 1.701,23 €+VATOut of Stock | View |
 |
WS5012-0F3J1020EA6Viewing | Two-finger | 1.701,23 €+VATIn Stock |
No matching products.
Accessories
| Product | Price | ||
|---|---|---|---|
 |
Zebra charging station, 2 slotsCRD-WS5X-2SCV-01 | 284,11 €+VATIn Stock | |
 |
Zebra power supply, 12 V, 4.16 A, 50 WPWR-BGA12V50W0WW | 55,05 €+VATIn Stock | |
 |
Zebra DC line cord, for 1-slot cradles and 4-slot chargersCBL-DC-388A1-01 | 10,10 €+VATOut of Stock | View |
 |
Zebra power cord, C13, EU, 1.8 m, for PWRS-14000-148R50-16000-220R | 11,25 €+VATIn Stock | |
 |
Zebra power cord, UK, 1.8 m, for PWRS-14000-148R50-16000-219R | 16,86 €+VATIn Stock | |
 |
Zebra Communication and Charging Cable, USBCBL-WS5X-USBA-01 | 77,30 €+VATIn Stock | |
 |
Zebra USB power supply, 5 V, 2.5 A, EU plugPWR-WUA5V12W0EU | 30,48 €+VATIn Stock | |
 |
Zebra power supply, UKPWR-WUA5V12W0GB | 30,48 €+VATIn Stock | |
 |
Zebra spare batteryBTRY-WS5X-13MA-01 | 112,95 €+VATIn Stock | |
 |
Zebra charging station, 10 slotsCRD-WS5X-10SCV-01 | 1.006,82 €+VATOut of Stock | View |
 |
Zebra charging-/communication station, EthernetCRD-WS5X-5SECV-01 | 1.604,46 €+VATIn Stock | |
 |
Zebra power supply, 12 V, 9 A, 108 WPWR-BGA12V108W0WW | 118,00 €+VATIn Stock | |
 |
Zebra DC line cord, for multi-slot cradlesCBL-DC-381A1-01 | 29,23 €+VATIn Stock | |
 |
Zebra battery charging station, 4 slotsSAC-WS5X-4S13-01 | 398,13 €+VATOut of Stock | View |
 |
Zebra battery charging station, 20 slotsSAC-WS5X-20S13-01 | 1.530,90 €+VATIn Stock | |
| Zebra Battery Charger Shims, pack of 20SHIM-SAC-WS5X13-01 | 25,54 €+VATOut of Stock | View | |
 |
Zebra spare partSG-WS5X-TRGA-01 | 109,66 €+VATIn Stock | |
 |
Zebra Replacement Finger StrapSG-WS5X-STRP-10 | 66,22 €+VATOut of Stock | View |
 |
Zebra Back of Hand MountSG-WS5X-BHMT-02 | 90,59 €+VATOut of Stock | View |
 |
Zebra hand strapSG-WEAR-HNWPRS-02 | 46,82 €+VATOut of Stock | View |
 |
Zebra Hand WrapSG-WEAR-HNWPRM-02 | 46,82 €+VATOut of Stock | View |
 |
Zebra Hand WrapSG-WEAR-HNWPRL-02 | 46,82 €+VATOut of Stock | View |
 |
Zebra Hand WrapSG-WEAR-HNWPRM-01 | 44,59 €+VATIn Stock | |
 |
Zebra Hand WrapSG-WEAR-HNWPLS-01 | 44,59 €+VATIn Stock | |
 |
Zebra Hand WrapSG-WEAR-HNWPLM-02 | 46,82 €+VATIn Stock | |
 |
Zebra Hand WrapSG-WEAR-HNWPLL-02 | 46,82 €+VATOut of Stock | View |
 |
Zebra Hand WrapSG-WEAR-HNWPLM-01 | 44,59 €+VATIn Stock | |
 |
Zebra screen protectorSG-WS5X-SCRNP1-01 | 7,84 €+VATIn Stock |
