| Part Number |
ZQ61-AUX2E14-00 |
| Model |

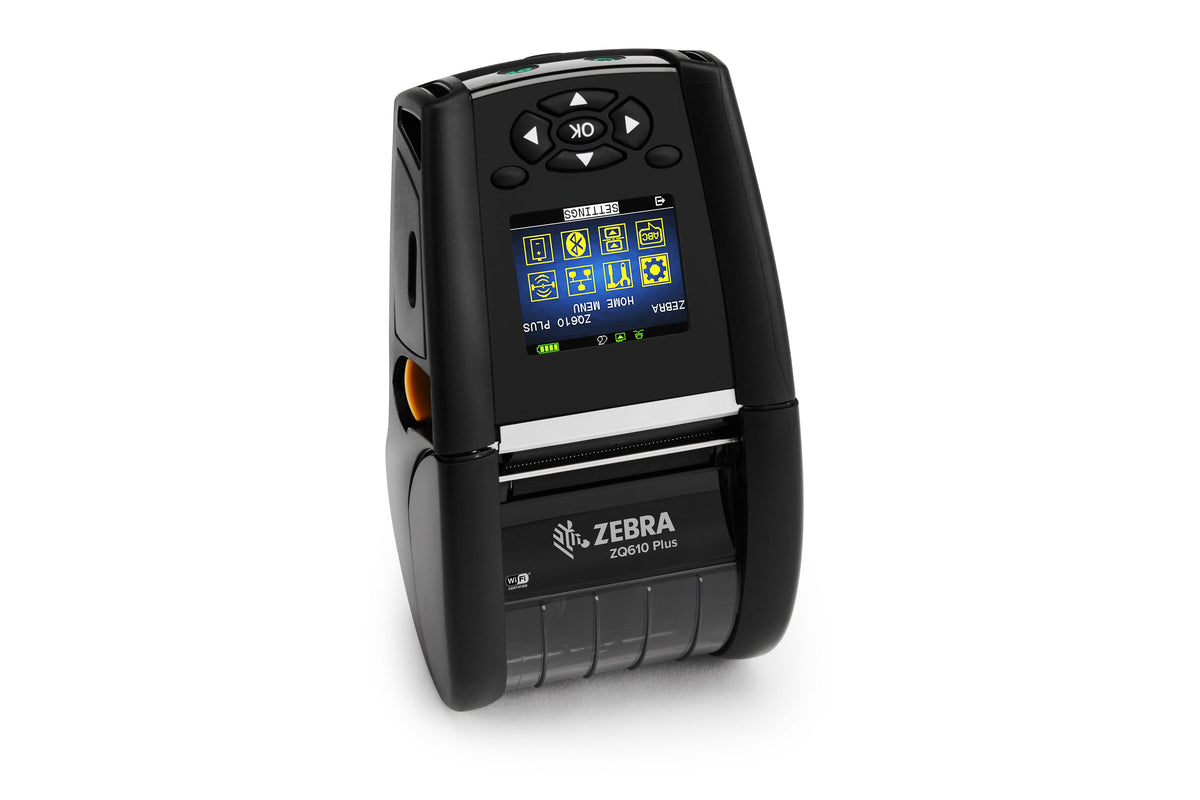

Zebra ZQ610 Plus (ZQ600 Plus Series) |
| Printer Type |
Mobile label and receipt printer, 2-inch |
| Print Method |
Direct thermal |
| Resolution |
203 dpi (8 dots/mm) |
| Print Speed |
Up to 115 mm/s (4.5 in/s) |
| Print Width |
48 mm |
| Media Width |
25 mm to 55.4 mm |
| Roll Diameter |
Max. 55.9 mm OD on 19 mm or 34.9 mm core |
| Paper Thickness |
0.058–0.140 mm (2.3–5.5 mil) tag stock, up to 0.165 mm (6.5 mil) label stock |
| Media Type |
Linerless labels and receipt paper (silicone platen) |
| Sensors |
Black mark and gap (fixed centre position); label-present sensor for peel-and-present; tear bar |
| Interfaces |
USB 2.0 full-speed (mini-B, optional strain relief); RS-232C 14-pin up to 115.2 kbps; 10/100 Ethernet via optional charging cradle |
| Wireless |
Dual radio: Wi-Fi 6 802.11ax (2.4/5 GHz, MIMO; WPA3/WPA2/WPA, 802.1x, EAP-FAST/TTLS/TLS, PEAP, LEAP; 802.11k/v/r roaming) + simultaneous Bluetooth 5.3, BT SIG certified |
| NFC |
Zebra Print Touch – tap-to-pair and web help pages |
| Emulation / Command Set |
CPCL, EPL, ZPL, ZBI 2.x, XML; Link-OS |
| Fonts / Character Sets |
25 bitmapped + 1 smooth scalable font (CG Triumvirate Bold Condensed); optional Chinese, Japanese, Korean, Thai, Vietnamese |
| Barcodes |
1D: Code 39, Code 93, UCC/EAN-128, Code 128, Codabar, Interleaved 2 of 5, UPC-A, UPC-E, EAN-8, EAN-13 (with add-ons), MSI/Plessey, Postnet; 2D: PDF417, MicroPDF417, MaxiCode, QR Code, Data Matrix, Aztec, GS1 DataBar, TLC39 |
| Memory |
256 MB RAM / 512 MB Flash (128 MB user available); 400 MHz 32-bit ARM processor |
| Display |
Colour display 288 × 240 pixels, tempered glass; 5-way navigation, 2 soft keys, colour alerts |
| Drivers & Software |
Zebra Print DNA, Link-OS SDK, Printer Setup Utilities, ZebraDesigner, Printer Profile Manager Enterprise, PrintSecure; SOTI MobiControl, AirWatch, Ivanti Avalanche |
| Mobile Printing |
Android, Apple iOS (MFi), Windows |
| Battery |
3250 mAh (23.4 Wh) PowerPrecision+ Li-ion, removable (included); optional extended-capacity battery (BTRY-MPP-EXT1-01) |
| Charging |
In-printer via AC adapter (P1031365-042 EU / P1031365-041 UK) or single / 4-bay Ethernet charging cradle; spare batteries in 1-, 3- or 6-slot chargers – all sold separately |
| Environmental Sealing |
IP54 |
| Drop Specification |
Multiple 1.52 m (5 ft) drops to concrete |
| Dimensions (W × D × H) |
91.4 × 170.9 × 72.4 mm (W × L × H) |
| Weight |
0.6 kg (with battery) |
| Color |
Black |
| Operating Temperature |
−20 °C to 50 °C |
| Storage Temperature |
−25 °C to 65 °C |
| Humidity |
10–90% non-condensing |
| Certifications |
FCC Part 15 Subpart B, EN 55022 Class B, EN 60950, EN 55024, EN 61000-4-2/-3/-4/-5, VCCI Class B; CE, TÜV, CSA; ENERGY STAR; FIPS support available |
| Warranty |
12 months |
| In the Box |
Zebra ZQ610 Plus printer (Wi-Fi 6 + Bluetooth 5.3 + USB + RS-232 + NFC, linerless platen, black), 3250 mAh PowerPrecision+ Li-ion battery (BTRY-MPP-34MA1-01), belt clip, shoulder strap, quick start guide – AC adapter/charger, USB cable and media NOT included (order separately) |
