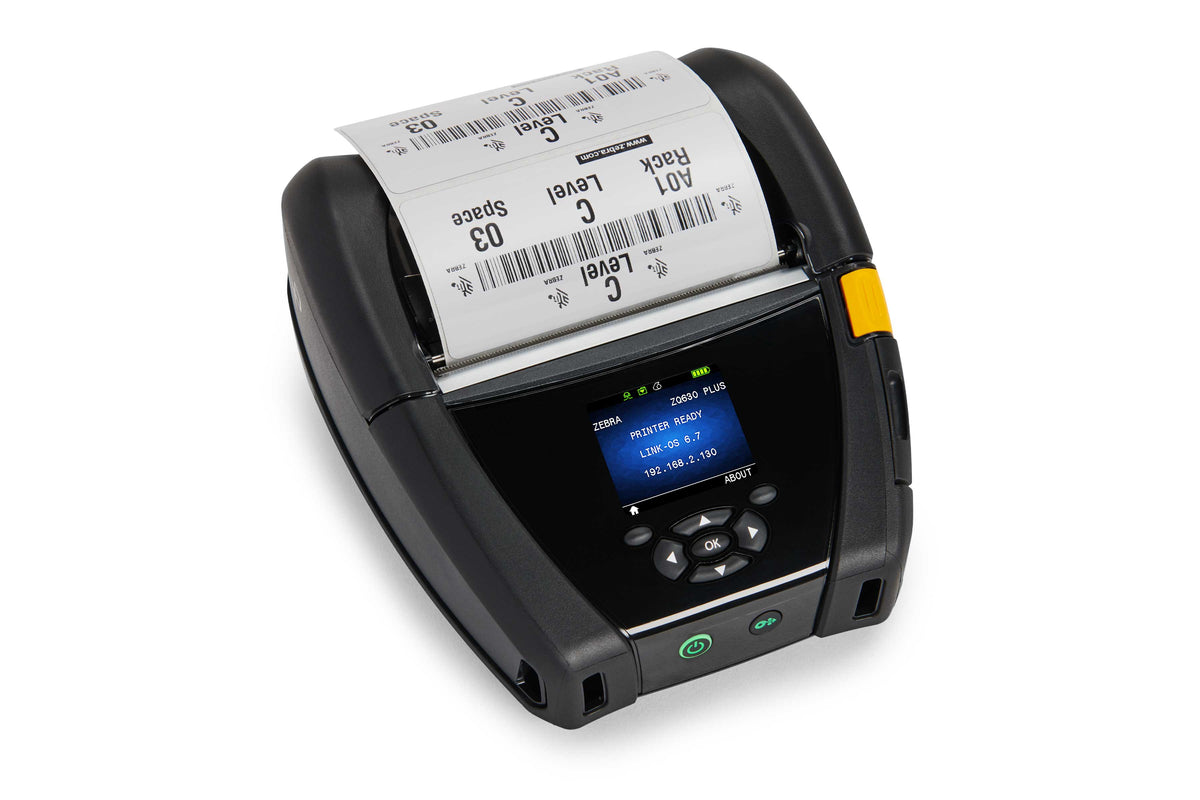

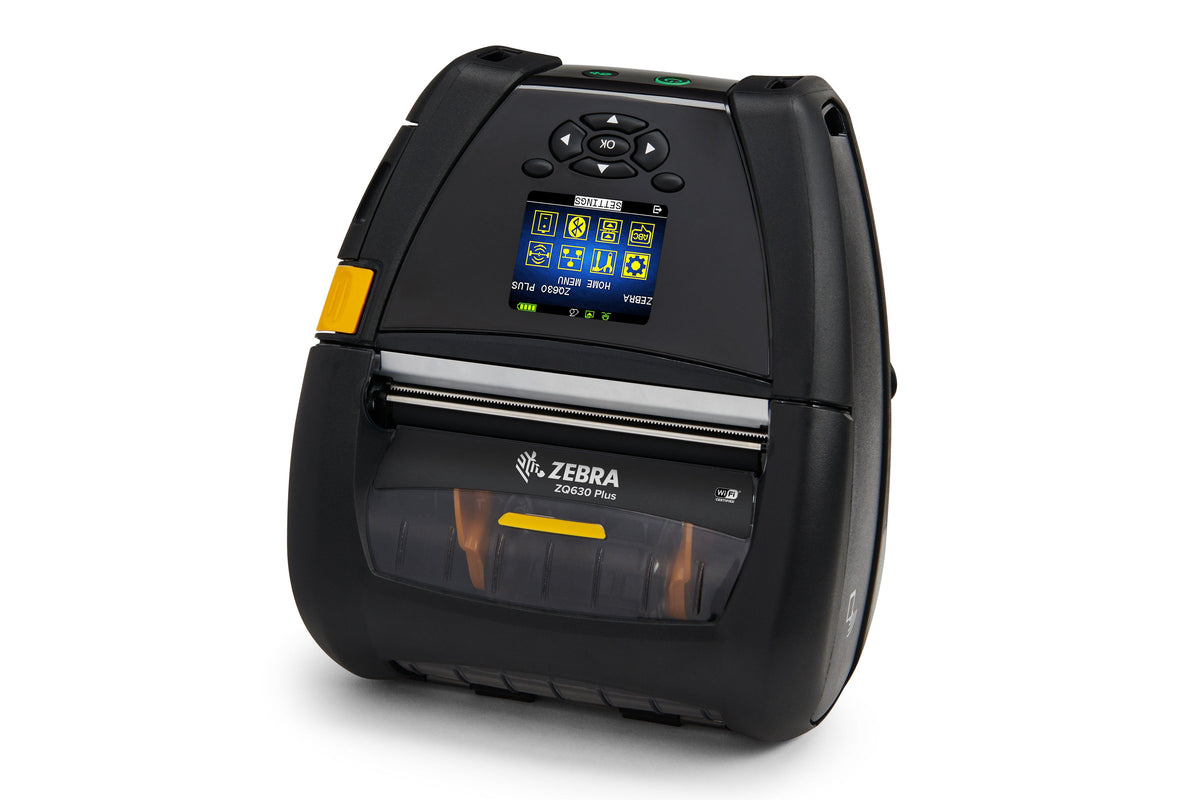

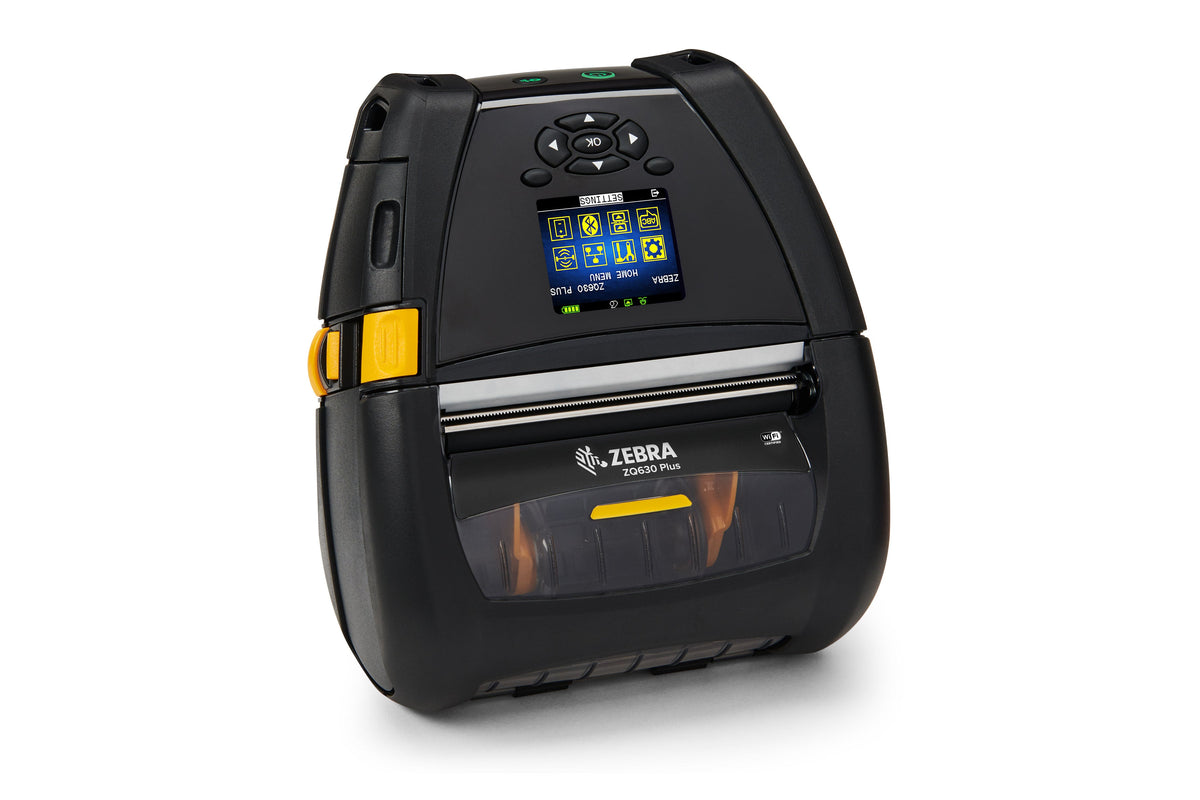

Zebra ZQ630 Plus Mobile Receipt & Label Printer (ZQ63-AUWAE14-00)

The Zebra ZQ630 Plus is Zebra's premium 4-inch mobile label and receipt printer – the next evolution of the QLn platform for retail, warehousing, logistics and manufacturing. It prints sharp 203 dpi direct thermal labels, tags and receipts up to 104 mm wide at up to 115 mm/s, has a large colour display, survives 1.83 m drops onto concrete, is IP54-sealed, and its 6600 mAh PowerPrecision+ battery powers even the longest shift. This version, ZQ63-AUWAE14-00, has a dual-band Wi-Fi 5 (802.11ac) + Bluetooth 4.2 dual radio plus USB, RS-232 and NFC tap-to-pair; it ships with the battery, a belt clip and a shoulder strap – the charger is sold separately.

Key Features

• Large colour display – 288 × 240 px tempered-glass screen with colour alerts, 5-way navigation and two soft keys; the Link-OS menu is shared with other Zebra printers.
• 4-inch labels, tags and receipts – 203 dpi barcodes, text and graphics up to 104 mm wide on media from 51 to 112 mm (rolls up to 66 mm), with peel-and-present mode and a label present sensor for issuing labels one at a time.
• Gap and black-mark sensing – fixed centre-position media sensors, centre-loading clamshell for different roll widths and a tear bar for easy dispensing.
• Wi-Fi 5 (802.11ac) + Bluetooth 4.2 – dual-band dual radio running Wi-Fi and Bluetooth simultaneously, with 802.11r fast roaming, WPA2/802.1x enterprise security and NFC tap-to-pair.
• Power for the longest shift – removable 6600 mAh (47.5 Wh) PowerPrecision+ battery with detailed health metrics, Power Smart Print Technology (an estimated 20–30% battery saving) and instant wake-up over Wi-Fi and Bluetooth.
• Business tough – over-moulded one-piece housing, IP54 dust and water resistance and multiple 1.83 m drops to concrete; works from −20 °C to 50 °C.
• Zebra Print DNA and Link-OS – CPCL, EPL and ZPL plus ZBI 2.x; remote management with Printer Profile Manager Enterprise, AirWatch, SOTI MobiControl and Ivanti Avalanche; PrintSecure and printhead diagnostics.
• Backward compatible with QLn420 accessories – reuse existing batteries, chargers, cradles and cases; Ethernet charging cradles add wired remote management (sold separately).

Ideal Applications

• Retail – shelf-edge and mark-down labels, replacement tags, mobile POS receipts and click & collect (BOPIS)
• Warehousing – pick-and-pack labels and lists, receiving, put-away, cycle counts and cross-docking
• Manufacturing – raw material and finished goods labels, staging and work-in-progress tracking
• Transport and logistics – shipping labels, reverse logistics and proof of delivery
• RFID tagging – case and pallet labels and asset tags (RFID versions)

All Zebra ZQ630 Plus Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Which version should you choose? Pick Bluetooth (ZQ63-AUF…) to print from a paired handheld or smartphone, Wi-Fi 5 + Bluetooth (…W…) for existing 802.11ac networks, or Wi-Fi 6 + Bluetooth (…X…) for the fastest, most secure roaming on new Wi-Fi 6/6E networks. Choose a linerless version (…2E14) for liner-free labels, or an RFID version (ZQ63-R…) to encode UHF tags – ZQ63-RUXAE16-00 carries the latest v2 encoder. Every version includes the 6600 mAh battery, belt clip and shoulder strap. Need a lighter 3-inch (72 mm) printer? See the Zebra ZQ620 Plus. Compare other models in our Mobile Receipt Printers collection or contact our team for volume pricing.
