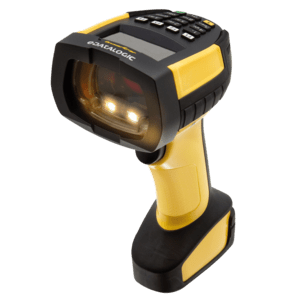

Datalogic PowerScan PBT9600 Barcode Scanner (PBT9600-DPXRBK30EU)
Regular price
1.776,62 € +VAT

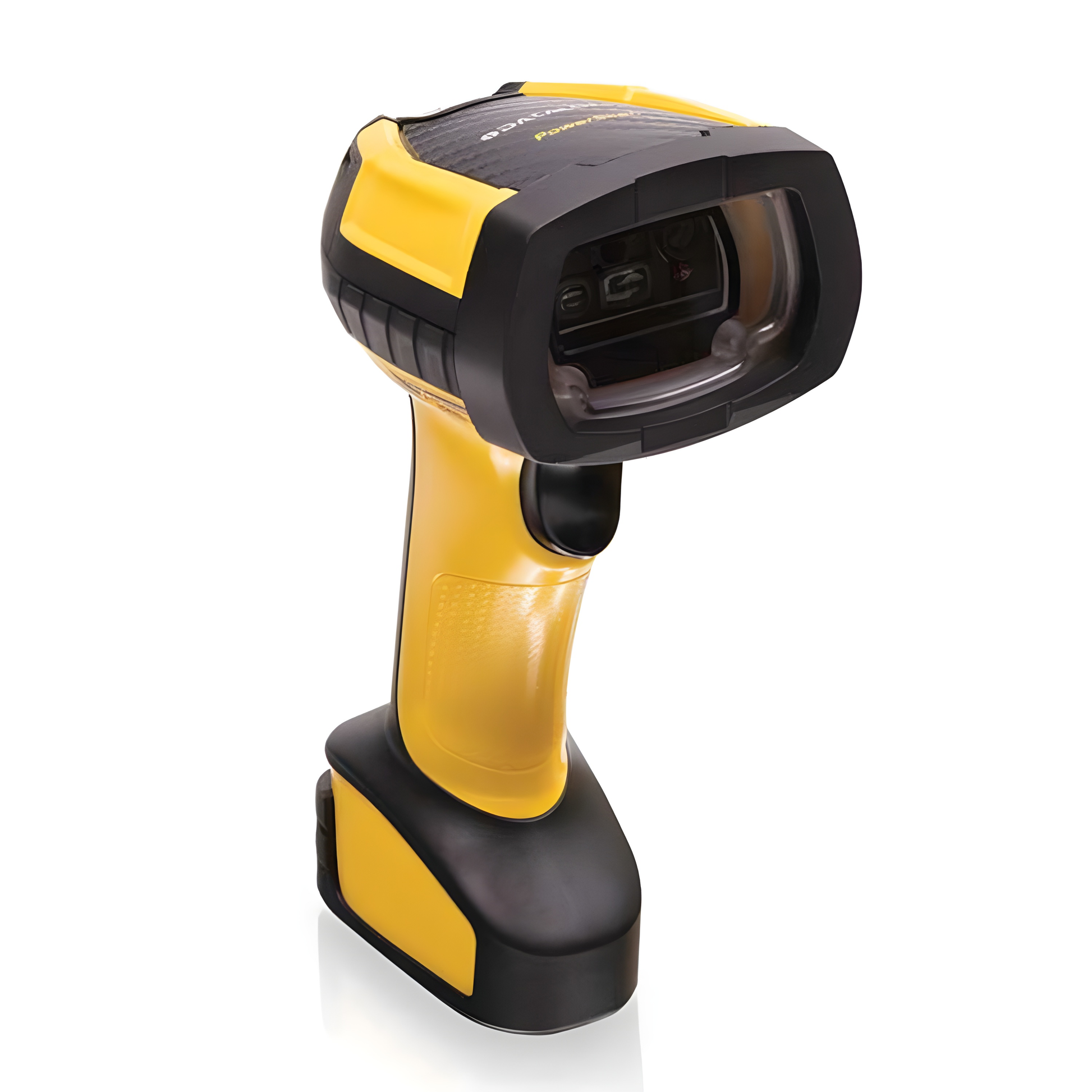

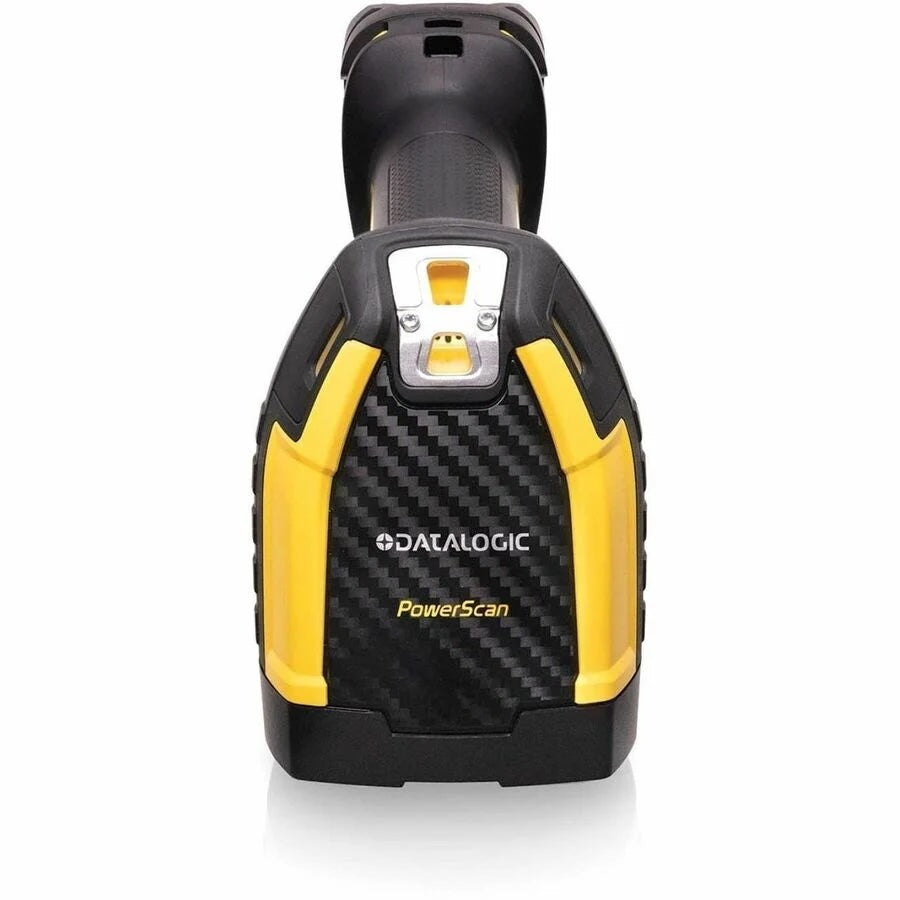

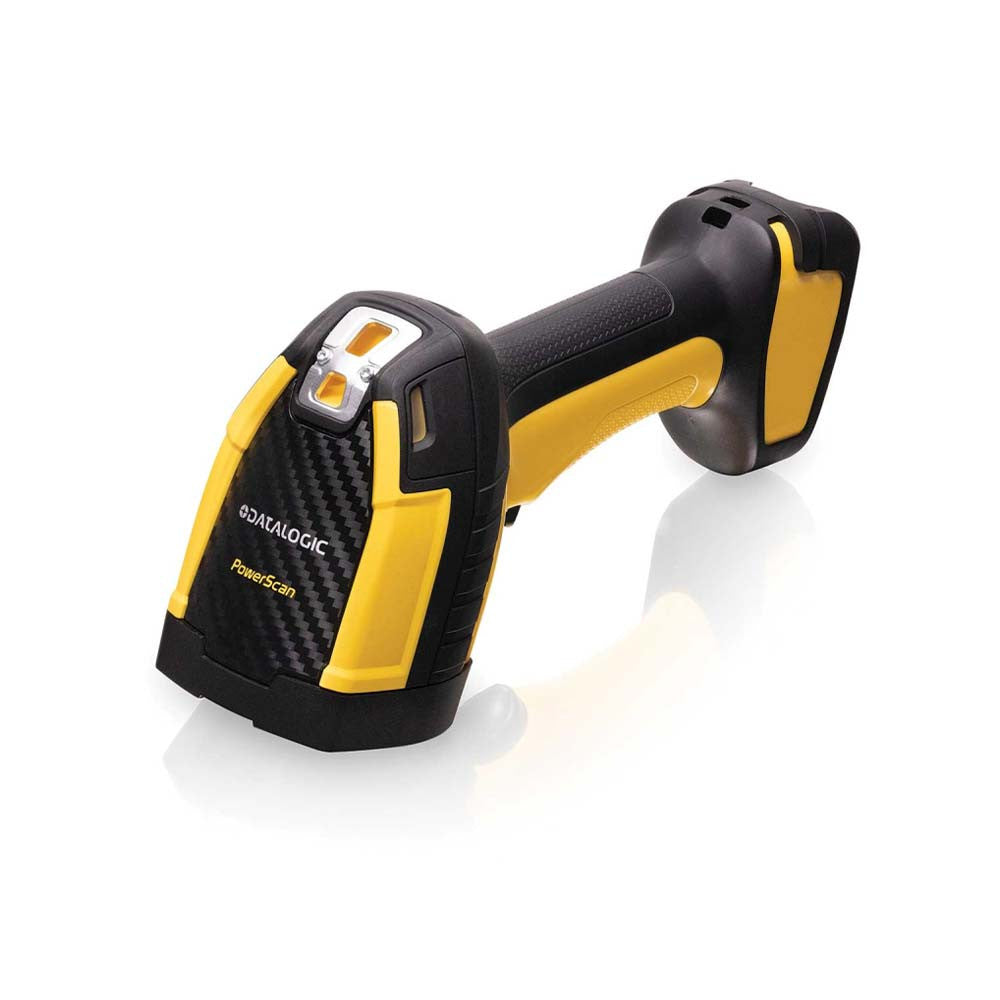

The Datalogic PowerScan PBT9600 DPX is the cordless Bluetooth® direct part marking (DPM) model of Datalogic's rugged PowerScan 9600 series, built for traceability in manufacturing. It reads codes marked directly on metal and plastic parts as well as printed 1D and 2D labels, and its Bluetooth® 5.0 radio (Class 1, up to 100 m in open air) links it to a PowerScan 9600 Bluetooth base station or directly to any Bluetooth-enabled PC, tablet or mobile computer. It charges wirelessly (inductively) in the base, so there are no charging contacts to wear out. A removable 3350 mAh battery lasts for more than 80,000 reads per charge, the scanner withstands 50 drops from 2.5 m, is sealed to IP65 and IP67 and comes with a 3-year Datalogic warranty. This version, PBT9600-DPXRBK30EU, has DPX direct part marking (DPM) optics – white, red and blue illumination for laser-etched, dot-peened, inkjet-printed and electrochemically etched marks on metal and plastic parts.
It is the model without a display – a straightforward trigger-only scanner. It is supplied as a complete Ethernet kit with the BC9680-BT Ethernet/PROFINET base station/charger and a power supply – only a standard network cable is needed to connect it.
📦 What's in the box – PBT9600-DPXRBK30EU
- ✅ Datalogic PowerScan PBT9600 DPX scanner – Direct Part Marking (DPX), Bluetooth 5.0, black
- ✅ Rechargeable battery – Li-ion, 3350 mAh, removable (RBP-PM96) – charges wirelessly in the base

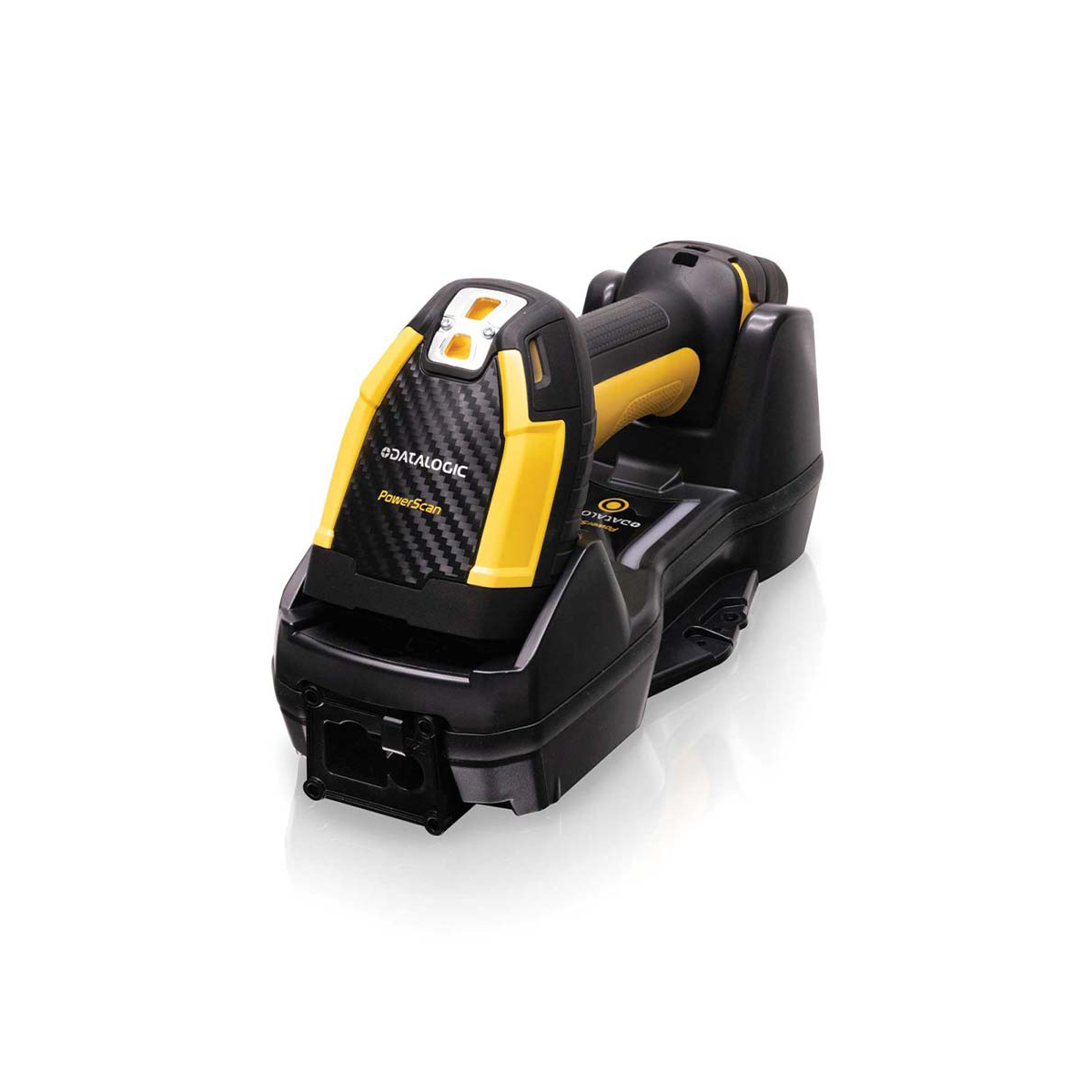

- ✅ BC9680-BT base station/charger – Ethernet and PROFINET interface (RJ45): charges the scanner wirelessly and links it via Bluetooth to your host system, server or PLC over the network
- ❌ Ethernet network cable – NOT included – use any standard RJ45 patch cable (Cat 5e or better)
- ✅ Power supply – 12 VDC (8-0935) with EU power cord 6003-0940 – powers the base for fast charging
- ❌ Stand / holder – not included
⚠️ Network cable not included: this Ethernet kit contains the scanner, battery, base station and power supply – connect the BC9680-BT base to your network switch or PLC with a standard RJ45 patch cable (Cat 5e or better). Need a USB or RS-232 connection instead? Choose the PBT9600-DPXRBK10EU or PBT9600-DPXRBK20EU kit.
💡 Getting started: connect the base to your PC or host and to the power supply, charge the scanner in the base and pair it with the base as described in the quick reference guide. Alternatively, the scanner can be paired directly with a Bluetooth-enabled PC, tablet or mobile computer (HID or SPP profile).
💡 The base doubles as the charging cradle. For a belt holster, a desk/wall holder, a hands-free stand or a spare battery for multi-shift work, add the PC-P096 holster, HLD-P096 holder, STD-P096 stand or a spare RBP-PM96 battery.
Key Features
- DPX direct part marking optics – white, red and blue illumination and Datalogic's 4D learning system automatically adapt capture and decoding to read laser-etched, dot-peened, inkjet-printed and electrochemically etched marks, as well as 2 mil 1D and 4 mil 2D codes.
- Bluetooth® 5.0 wireless technology – Class 1 radio with a range of up to 100 m in open air to the base station; pairs with a BC96x0-BT base or directly with any Bluetooth PC, tablet or mobile computer using the HID or SPP profile, with data encryption and scanner authentication.
- Wireless charging and long battery life – inductive charging without contacts or pins that could get dirty, bent or broken; the removable 3350 mAh Li-ion battery lasts for about 80,000 reads and charges to 95% in about 2.5 hours.
- Built for tough environments – withstands 50 drops from 2.5 m onto concrete (2.0 m at −20 °C), and the trigger is rated for 10 million pulls.
- IP65 and IP67 sealing – dust-tight and protected against water jets and temporary immersion, so the scanner can be cleaned and used in wet, dusty and outdoor areas.
- Clear good-read feedback – Datalogic 3GL™ (Three Green Lights), the Green Spot projected onto the code, a loud adjustable beeper and vibration confirm every read, even in noisy environments.
- Modular base station – the BC9600-series base/charger takes plug-in connection modules for USB and RS-232 (CM9630/CM9631) or Ethernet, EtherNet/IP and PROFINET (CM9680/CM9681); free Datalogic Aladdin configuration tool, OPOS/JavaPOS utilities and EASEOFCARE service plans.
Ideal Applications
- Direct part marking – laser-etched, dot-peened and inkjet-printed codes on metal and plastic parts in automotive, aerospace and electronics
- Manufacturing shop floor – work-in-progress, sub-assembly, component tracking, quality control and line inventory control
- Large production halls and assembly lines – cordless reading of part marks up to 100 m from the base, or paired via Bluetooth directly with a line PC, tablet or mobile computer
- Warehousing and logistics – receiving, picking, cycle counting and shipping
- Loading docks, cold stores and outdoor areas – IP65/IP67 protection against dust and water
All PowerScan PBT9600 DPX Versions
The highlighted row is the version you are currently viewing.
| Part Number | Host Connection | In the Box | |
|---|---|---|---|
| PBT9600-DPXRB | Bluetooth direct or via a BC96x0-BT base (not included) | Scanner + battery only | View product |
| PBT9600-DPXRBK10EU | USB | USB kit – BC9630-BT base | View product |
| PBT9600-DPXRBK20EU | RS-232 | RS-232 kit – BC9630-BT base | View product |
| PBT9600-DPXRBK30EU (this version) | Ethernet / PROFINET | Ethernet kit – BC9680-BT base | Viewing |
Technical Specifications
| Part Number | PBT9600-DPXRBK30EU |
|---|---|
| Model | Datalogic PowerScan PBT9600-DPX (PowerScan 9600 DPX series, cordless Bluetooth) |
| Scanner Type | Cordless Bluetooth handheld 2D area imager for direct part marking (DPM) and 1D/2D barcodes |
| Scan Engine | Direct Part Marking (DPX) |
| Image Sensor | 1280 × 800 pixels |
| Field of View | Not specified by manufacturer |
| Scan Range | Code 128 2.5 mil: 2.5–9.8 cm; Code 128 5 mil: 2.5–16.9 cm; EAN/UPC 13 mil: 2.5–22.5 cm; Data Matrix 5 mil: 2.0–10.0 cm; Data Matrix 10 mil: 2.0–16.2 cm (typical) |
| Minimum Element Resolution | 1D: 2 mil; 2D: 4 mil |
| Skew / Pitch / Roll | Pitch ±52°, roll 360°, skew ±52° |
| Minimum Print Contrast | 15% |
| Light Source | Aiming: 650 nm laser (VLD); illumination: white, red and blue LEDs |
| 1D Symbologies | All standard 1D codes incl. GS1 DataBar linear codes (auto-discrimination) |
| 2D Symbologies | Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Dot Code; stacked: PDF417, MicroPDF417, MacroPDF, GS1 DataBar stacked and composite codes, EAN/JAN and UPC A/E composites; postal: Australian Post, China Post, IMB, Japanese Post, KIX Post, Planet, Portuguese Post, Postnet, Royal Mail (RM4SCC), Swedish Post; direct part marks: laser etching, dot peening, inkjet printing, electrochemical etching (4D learning system) |
| Display / Keypad | None (trigger only) |
| Wireless Communication | Bluetooth 5.0 certified, Class 1/2/3 (2.4 GHz); profiles HID and SPP; data encryption and scanner authentication |
| Radio Range | Up to 100 m in open air (measured with the base station); range with other Bluetooth hosts depends on the device |
| Base Station | BC9680-BT Ethernet/PROFINET Bluetooth base station/charger (RJ45) included |
| Host Interfaces | Bluetooth HID/SPP directly to the host, or via the base station: USB and RS-232 (BC9630-BT/BC9631-BT), Ethernet and PROFINET (BC9680-BT/BC9681-BT or CM968x module) |
| Battery | Removable Li-ion battery pack RBP-PM96, 3350 mAh; 80,000+ reads per charge |
| Charging Time | Wireless (inductive) charging in the BC96xx-BT base: approx. 2.5 h to 95%, 3.2 h to 100% (12 VDC external power) |
| User Indicators | Datalogic 3GL (Three Green Lights), Green Spot on the code, dual good-read LEDs, adjustable beeper (tone and volume), vibration |
| Color | Black (yellow trigger) |
| Dimensions (H × W × D) | 19.7 × 14.9 × 7.9 cm |
| Weight | 434.6 g |
| Power | Scanner: Li-ion battery, operating 552 mA @ 4.1 V; base: host-powered 5 VDC ±5% or 10–30 VDC, external power supply 10–30 VDC; charging < 15 W; base only 150 mA @ 5 V |
| Environmental Sealing | Scanner IP65 and IP67; base IP65 on BC9631-BT/BC9681-BT models |
| Drop / Tumble | 50 drops from 2.5 m at 20 °C; 50 drops from 2.0 m at −20 °C; trigger rated for 10 million pulls |
| Electrostatic Discharge | 20 kV (air discharge) |
| Ambient Light Immunity | 0–100,000 lux |
| Operating Temperature | −20 °C to 50 °C (charging 0–40 °C) |
| Storage Temperature | −40 °C to 70 °C |
| Humidity | 0–95% RH, non-condensing |
| Software & Management | Datalogic Aladdin configuration tool, OPOS / JavaPOS utilities; EASEOFCARE service plans available |
| Warranty | 36 months (3-year Datalogic factory warranty) |
| In the Box | PowerScan PBT9600-DPX Bluetooth scanner (black) with removable Li-ion battery (3350 mAh, RBP-PM96), BC9680-BT Ethernet/PROFINET Bluetooth base station/charger (RJ45), power supply 8-0935 (12 VDC) with EU power cord 6003-0940 – Ethernet network cable NOT included (use a standard RJ45 patch cable) |
How to read the part numbers: DPX stands for the DPX direct part marking optics; R/RB means the removable battery is included. Versions ending in K10 are USB kits and versions ending in K20 RS-232 kits with the BC9630-BT base station and a power supply, K30 is the Ethernet kit with the BC9680-BT base station and a power supply; the final EU gives the power cord supplied (US versions are available on request), and the version without a K suffix is the scanner only. Looking for a version without DPM optics? See the standard PowerScan PBT9600 models in our Cordless / Wireless Barcode Scanners collection, or contact our team for volume pricing.
