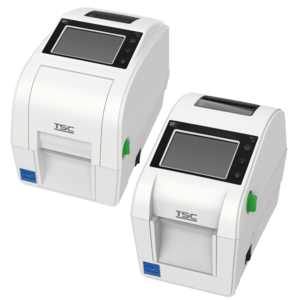

TSC DH220LHC Desktop Label Printer (DH220LHC-A001-1132)

The TSC DH220LHC (DH220LHC-A001-1132) is a 2-inch healthcare desktop label printer for direct-thermal printing at 203 dpi and up to 203 mm/s (8 ips), with a max. print width of 54 mm. Its white, antibacterial and disinfectant-ready housing with sealed buttons and an IEC 60601-1 medical-grade power supply suit hospitals, laboratories and pharmacies. This LED version keeps operation simple with status icons and feed, pause and reprint buttons. The factory-fitted linerless cutter kit (linerless platen + cutter) cuts liner-free labels – no backing-paper waste. It holds large label rolls up to 165 mm (6.5") OD, prints liner-free (linerless) labels 10–60 mm wide, speaks TSPL-EZD with automatic EPL, ZPL and DPL emulation and connects via USB 2.0, RS-232, 10/100 Ethernet and USB host, plus factory-installed Wi-Fi 802.11a/b/g/n/ac and Bluetooth 5.0. Supplied with power supply, EU power cord and USB cable – ready to print.

Key Features

• Direct thermal at 203 dpi – up to 203 mm/s (8 ips), max. print width 54 mm, labels up to 25.4 m long
• Healthcare design: white antibacterial, disinfectant-ready enclosure with an easy-to-clean surface and sealed buttons
• IEC 60601-1 certified medical-grade power supply for safe use in clinical environments
• Large 165 mm (6.5") rolls on 25.4–38.1 mm cores, 10–60 mm wide – linerless labels leave no backing paper to dispose of
• LED status and icon indicators with feed, pause and reprint buttons – nothing to configure
• Factory-fitted linerless cutter kit: linerless platen roller + full-cut cutter for liner-free labels
• TSPL-EZD firmware with automatic EPL, ZPL/ZPL II and DPL language switching – existing label templates print unchanged
• USB 2.0, RS-232, 10/100 Ethernet and USB host plus factory-installed Wi-Fi 802.11a/b/g/n/ac + Bluetooth 5.0 for carts and mobile workstations
• 256 MB SDRAM, 512 MB Flash, microSD slot (up to 512 GB), real-time clock and buzzer
• Remote management via embedded web page, TSC Console and SOTI Connect; HTTPS, SNMPv3 and 802.1X security
• 3-year TSC printer warranty in EMEA

Ideal Applications

• Linerless labels for specimen bags, food trays and pharmacy bags – no liner waste
• Hospitals – patient ID wristbands, admission and chart labels
• Laboratories – specimen and sample tube labels
• Pharmacies – medication and prescription labels
• Blood banks and sterile services – traceability labels
• Clinics, care homes and veterinary practices – sample, medication and file labels

All DH220LHC Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Need a different display, media option or wireless option? All DH220LHC versions are listed above. Compare other models in our Desktop Label Printers collection or contact our team for volume pricing.
